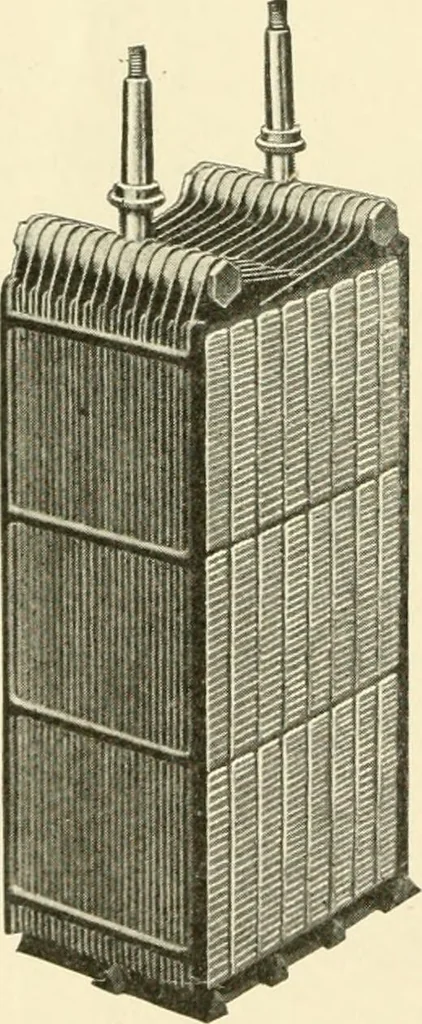

ete battery,is shown in Fig. 9. The electrolyte consists of a 20 per centsolution of caustic potash, which, however,undergoes no chemical change during theprocess of charge or discharge, acting simplyas a conveyor of oxygen between the plates.The charging current, entering at the posi-tive plates,… … Fifi. 9.Complete Edison Cell. 226 STORAGE BATTERIES 19 strong individually and close together, being separated by thinstrips of vulcanized rubber, thus forming a compact mass. Theterminals of the plate pass through the cover of the cell, from whichthey are insulated by vulcanized rubber bushings.…
