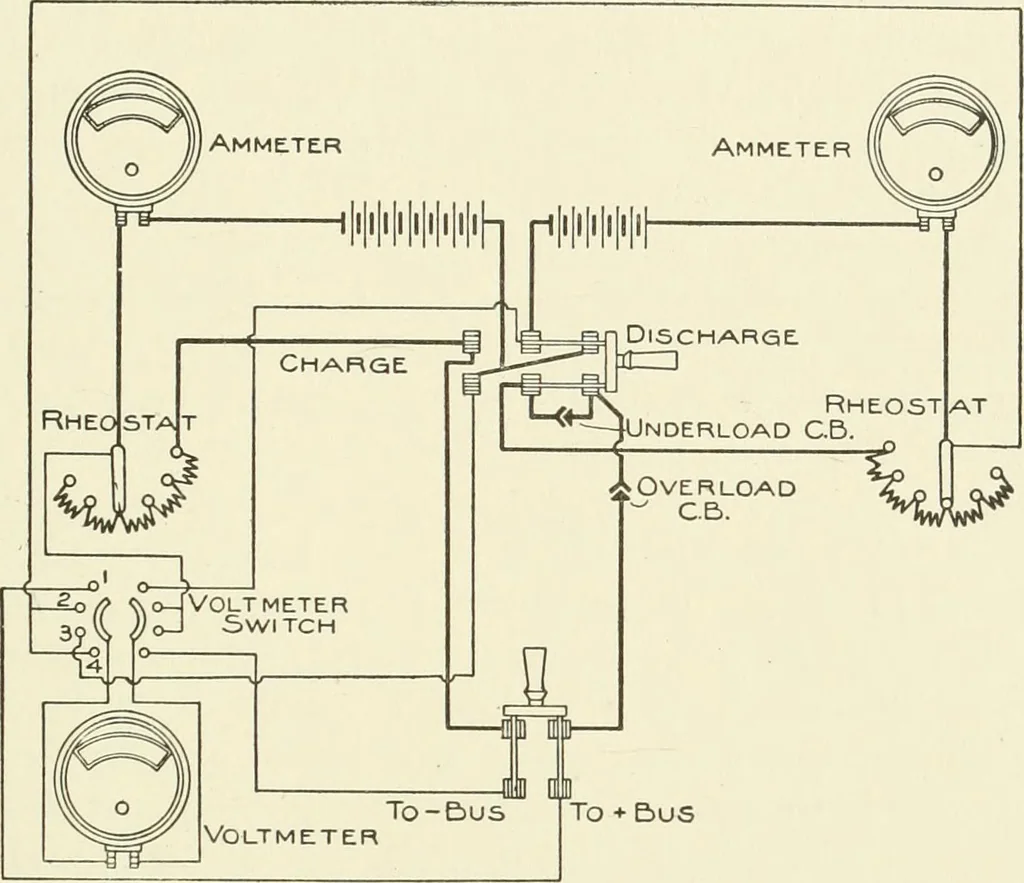

be employed only with smallequipments. Fig. 28 shows a diagram of connection for chargingin this manner, and coupling the two halves of the battery in series 264 STORAGE BATTERIES 57 during discharge, the discharge voltage being also regulated by re-sistance, there being no end cells employed.… … Fig. 28. Connections for Parallel Charge, Series Discharge. ning to the end of discharge. To be sure, this decline is gradual;but its total value is large, being from about 2.2 to about 1.8 volts,which is a decrease of nearly 18 per cent. In order to maintain a constant voltage, the usual plan is…
