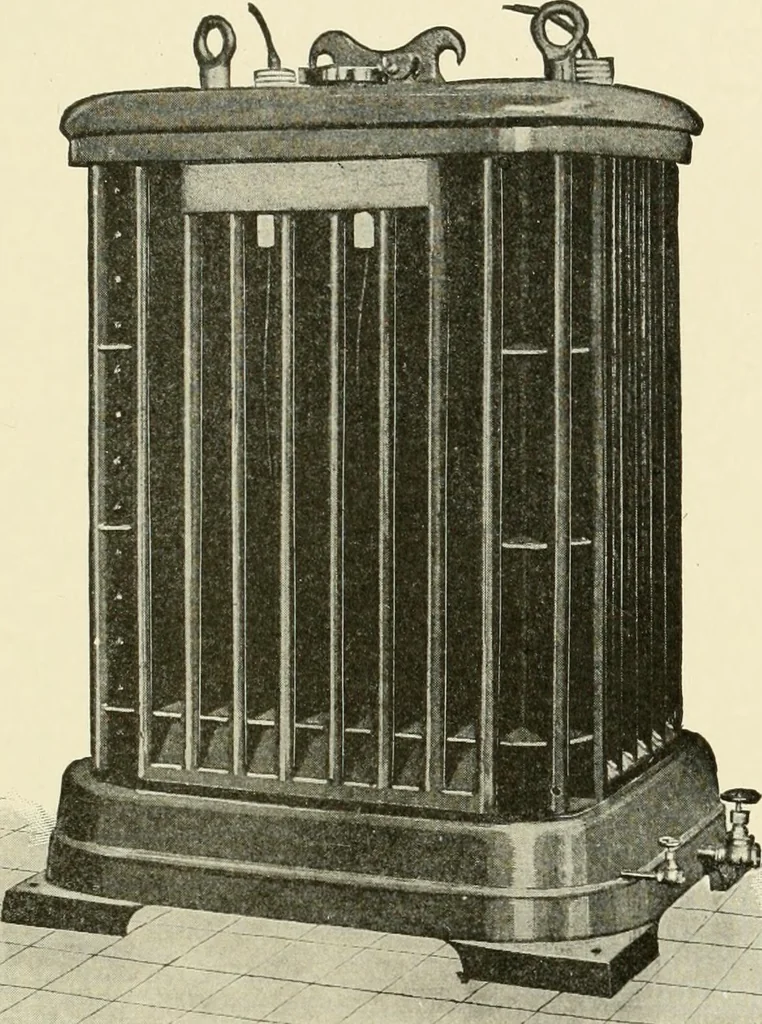

Fig. 14. Air-Cooled Transformer 58 POWER STATIONS 43 vice versa, at the substation, may be of three general types, accord-ing to the method of cooHng. Large transformers require artificialmeans of cooling, if they are not to be too bulky and expensive. Theymay be air-cooled, oil-cooled, or… … Fig. 15. Oil-Cooled Transformer Air-cooled transformers, Fig. 14, are usually mounted over anair-tight pit fitted with one or more motor-driven blowers which feedinto the pit. The transformer coils are subdivided so that no part)f the winding is at a great distance from air and the iron is…
