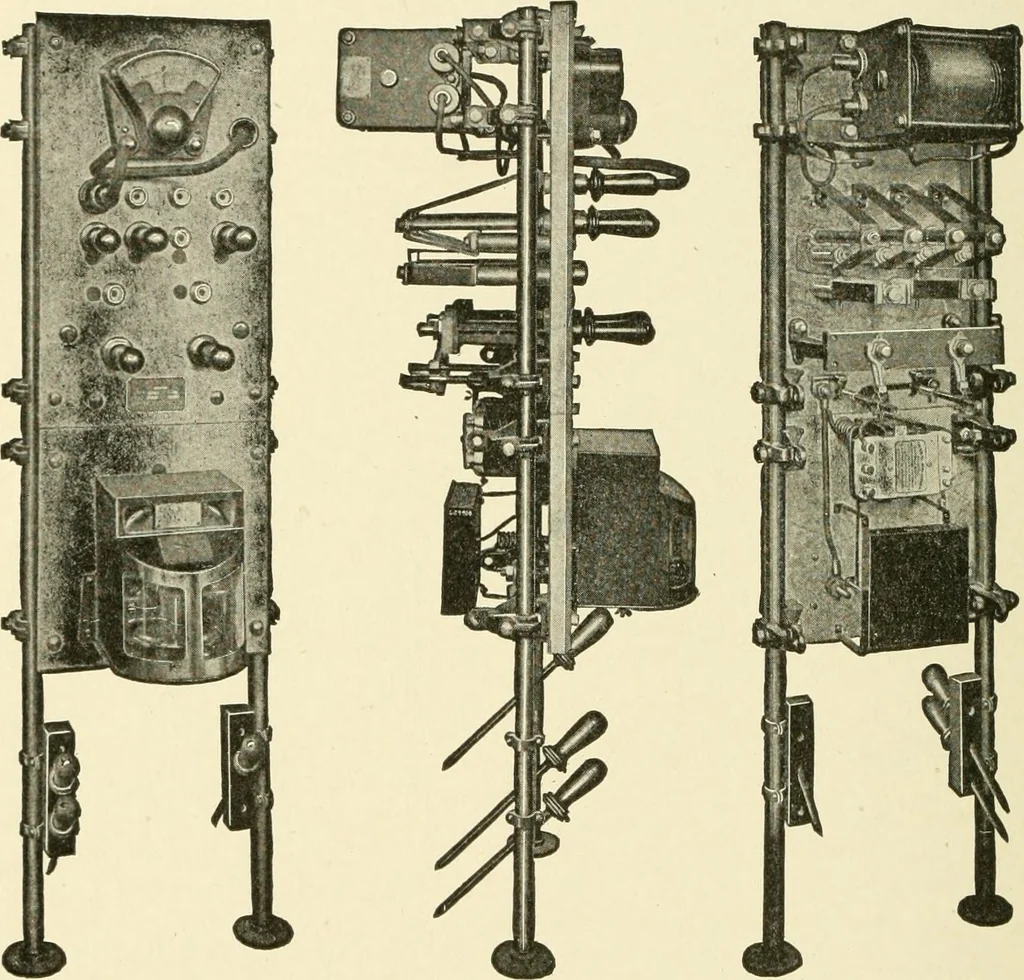

TR/P CO/L TO co/iT/nuous CUHRE/iT SUPPLy Fig. 30. Wiring Diagram for TrippingDevices 71 62 POWER STATIONS Fig. 32. A kicking coil is connected in circuit between the ar-resters and the machine to be protected, to aid in forcing the hghtningdischarge across the gap. In railway feeder panels such… … Fig. 31. Single Panel for Series Transformers in Arc-Lighting Circuits For alternating-current work, several gaps may be arranged inseries, these gaps being formed between cylinders of non-arcingmetal. High resistances and reactance coils are used with these,as in direct-current arresters. Fig. .33…
