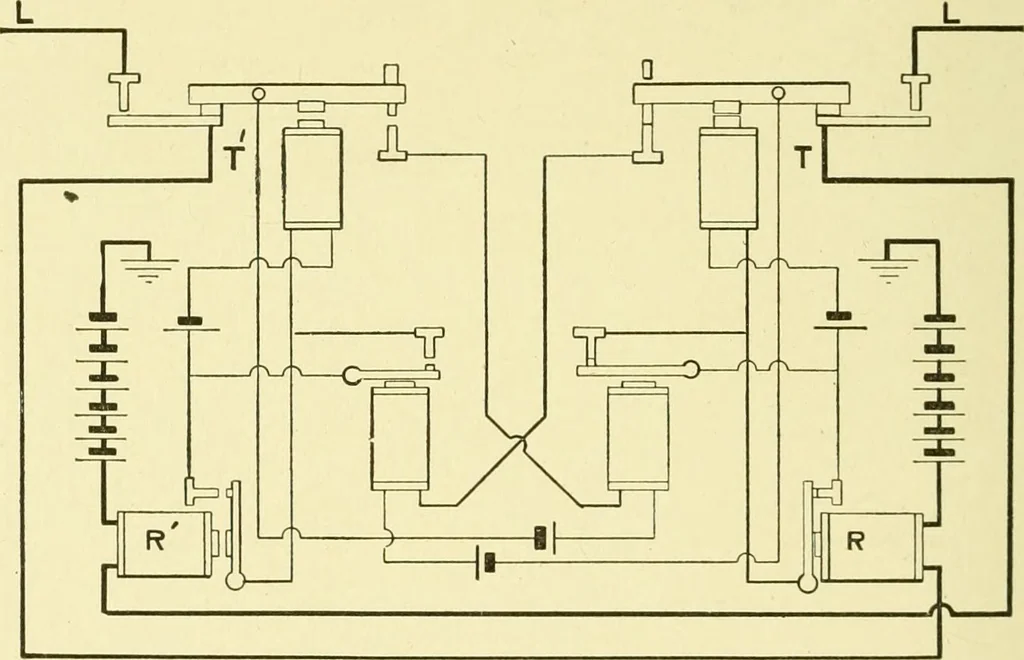

cuit is established through HM which neutralizes theeffect of the constant current and releases the armature; this, how-ever, is then held by the relay magnet RM and maintains continuityof line at C. Besides the Weiny-Phillips repeater there are many others, fromwhich the following are chosen to… … Fig. 18. Wiring Diagram for .\tkiiisoii Repeater Circuit as illustrated in Fig. 13, and separate local relays, sometimes calledrepeating sour.ders. Instead of holding magnets on the main line relays, as in theWeiny-Phillips repeater, Atkinson uses an accessory relay whichaccomplishes the desired…
