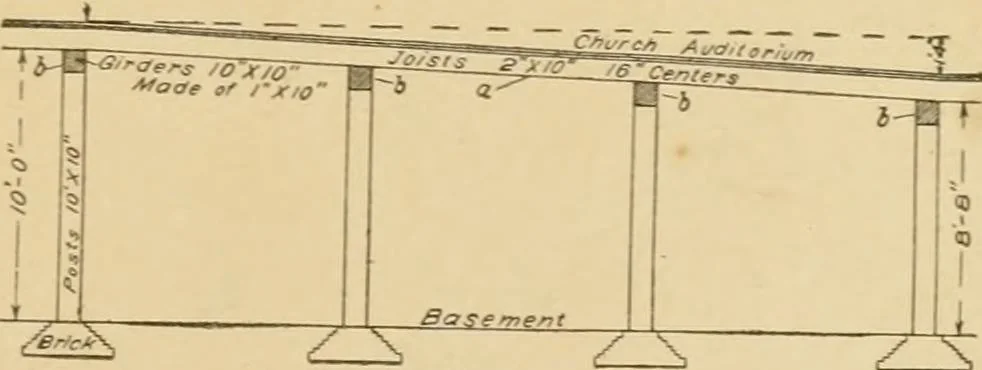

same as the slope required for the finished floor. Fig. ISO showsthe arrano-ement whenit is desired that thegirders shall run fromside to side of theroom, at right ancrlesto the direction of theslope of the floor. Thejoists a will then be parallel to the direction of the slope, and are inclined to… … Sana Fig. 180. Inclined Floor. 123 114 CARPENTRY resting on top of the girders will slope steadily from end to end.When a simple inclined floor is employed, the seats must bearranged in straight rows, extending across the room from side toside, so that each line of seats may be level from end to…
