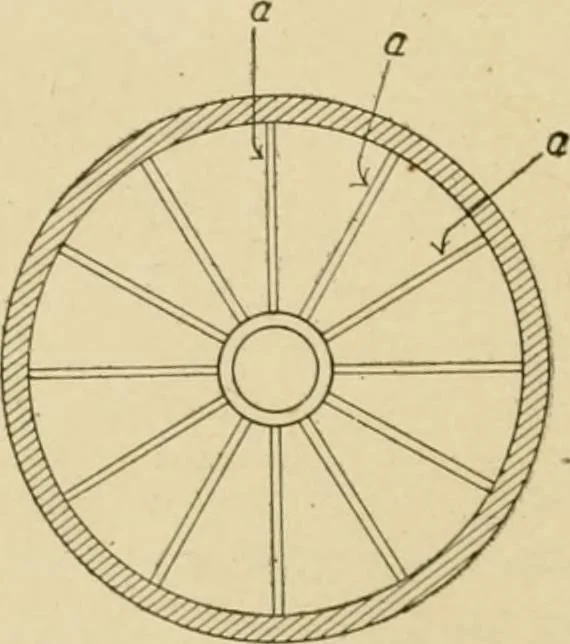

Fig. 210. Plan of Dome Framingwith Central Opening. Fig. 211. Plan of DomeFraming Avith Opening. arrangement. Four trusses, a a a a^ span the entire distancebetween the walls, and are placed as shown in the figure, so as toleave the opening B in the center. Four half trusses c c c c are 142…
