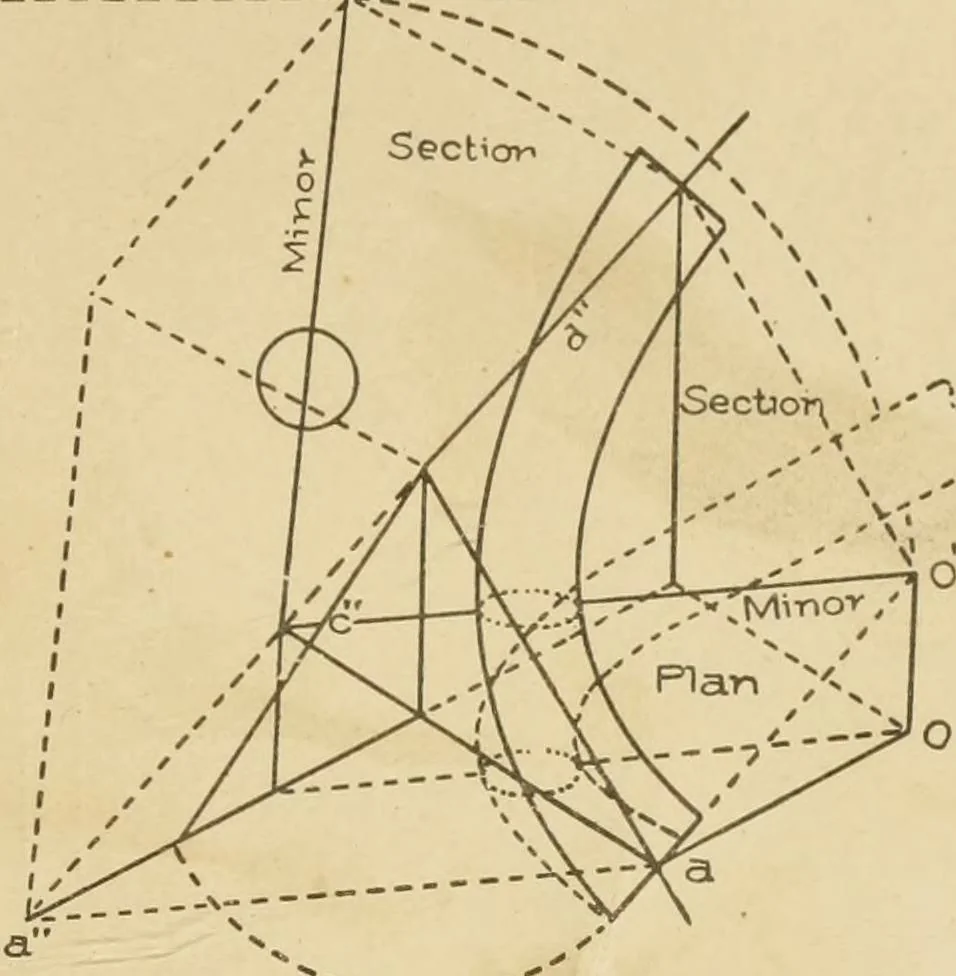

to ac inFig. 117, which is a linedrawn square to theground line from thene\yel and shown in allpreceding figures to havebeen used for the baseof a triangle containing the bevel. Make a lO in ^S- 123. Developed Section of Plane Inclining Un equally ni Two Directions. Fig. 118 equal to -mj 0 in Fig.…
