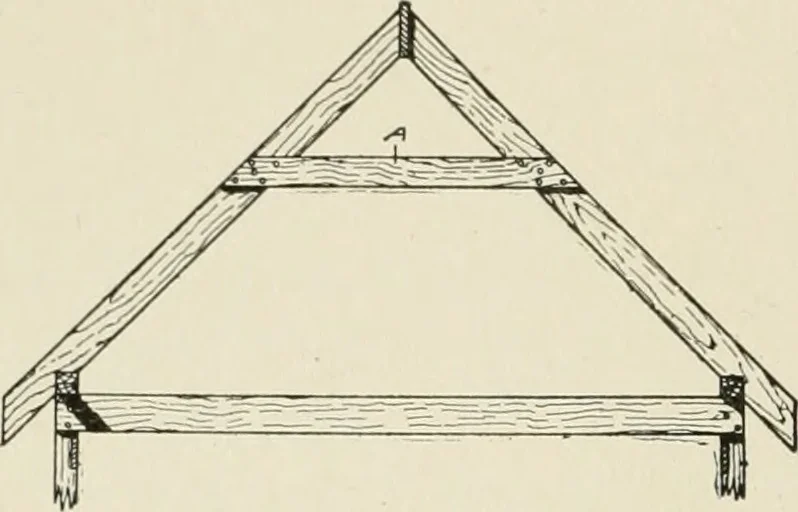

method is to use fewerupright pieces and to place ahorizontal piece A on the top ofthem, running the whole length ofthe building and supporting eachrafter. This is shown in Fig. 181.An upright piece B should beplaced under every sixth or sev-enth rafter in order to give the necessary stiffness to… … Fig. 182. Collar or Tie Beams as InteriorSupport for Rafters
