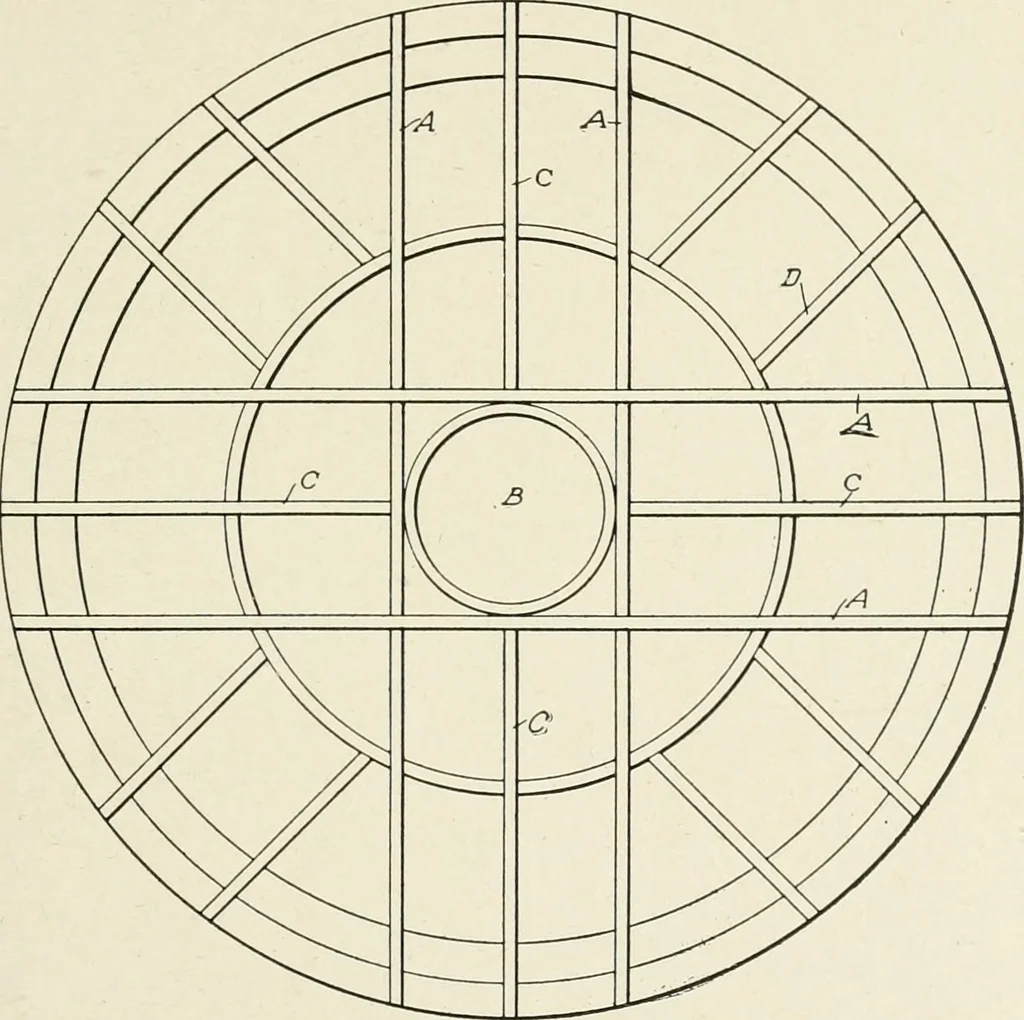

raced by means of the pieces D. 192 CARPENTRY 181 The rounded shape is given to the exterior and interior of the bentby pieces of plank bent into position as shown. The whole is coveredwith boarding which is cut to a special shape so that it can be bentinto place. The methods of applying the… … Fig. 253. Framing Plan for Dome Having Cupola frequently this feature is present in the design, and the roof mustbe framed to allow for it. There are several different ways of arrang-ing the trusses so as to leave an opening in the center of the rooffor the lantern. Fig. 253 shows a very good…
