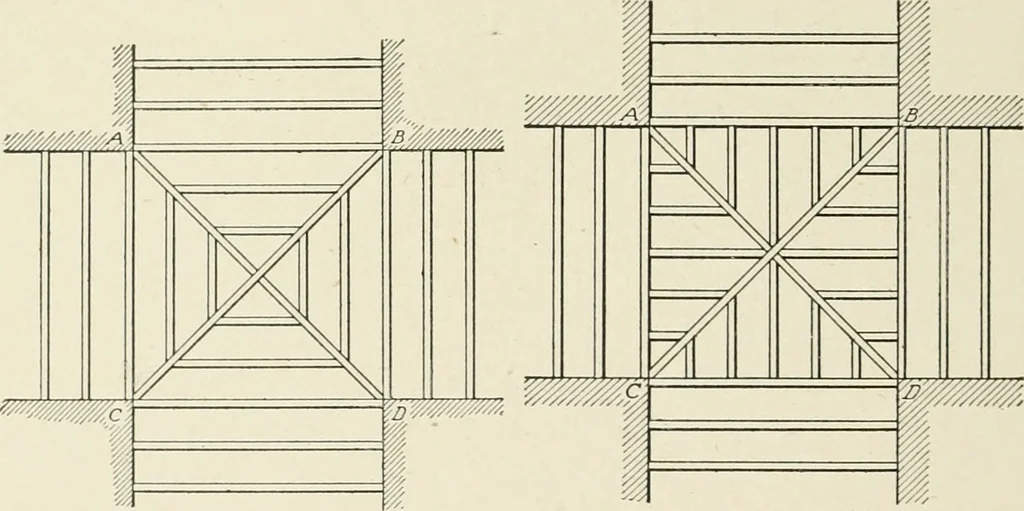

the side walls at the spring-ing line. When, however, the two vaults intersect each other, theside walls must stop at the points where they meet, and a square orrectangular area is left which has no vertical walls around it Thecovering for this area must be supported at the four corner pointsin… … Fig. 265. One Method of Cradling forGroined Ceiling Fig. 266. Another Method of Cradling forGroined Ceiling in the figure. Diagonal ribs A D and C B are put in place so as tospan the distance from corner to corner and these form the basisfor the rest of the framing. They must be bent to such a…
