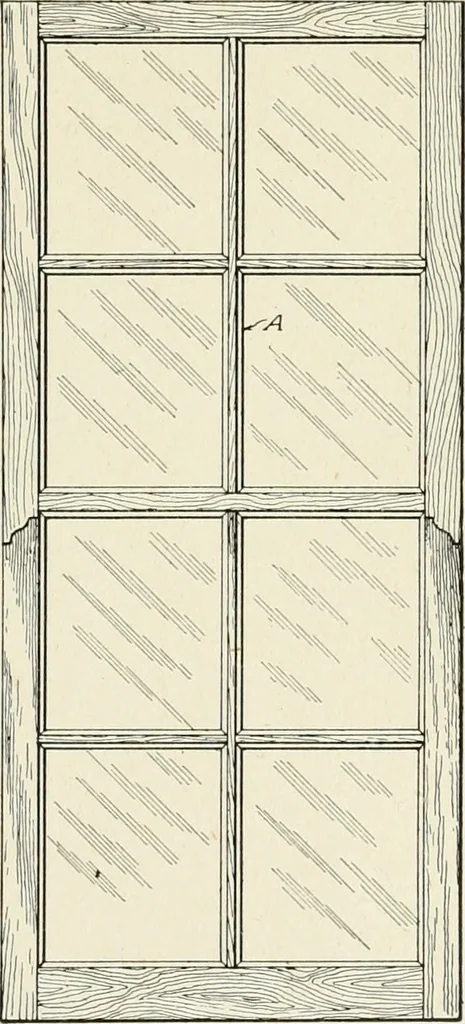

different principle entirely.This sash is hinged at the sides to the frame so as to swing either inor out. The principal objection to this arrangement is the difficultyof making such a sash water- and weather-tight. It is also impossi-ble to use outside fly screens, if the sashes are hung to swing… … Fig. 319. Window Sash ShowingMuntins 237 226 CARPENTRY will be seen that the outside architrave is similar to the one whichwas described in connection with the double-hung window, and inthis respect there is no difference between the two. There is, how-ever, no box for the accommodation of weights…
