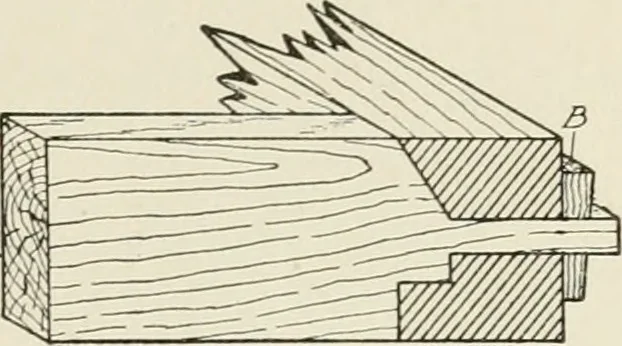

Fig. 47. Pinned Tenon-and-TuskJoint Fig. 48. Pegged Tenon-and-TuskJoint as shown in Fig. 48, so as to pass clear through the mortised piece,and to fasten it with a peg B on the other side. The peg may be cutslightly tapering, as shown, so that when it is driven in place it willdraw the pieces…
