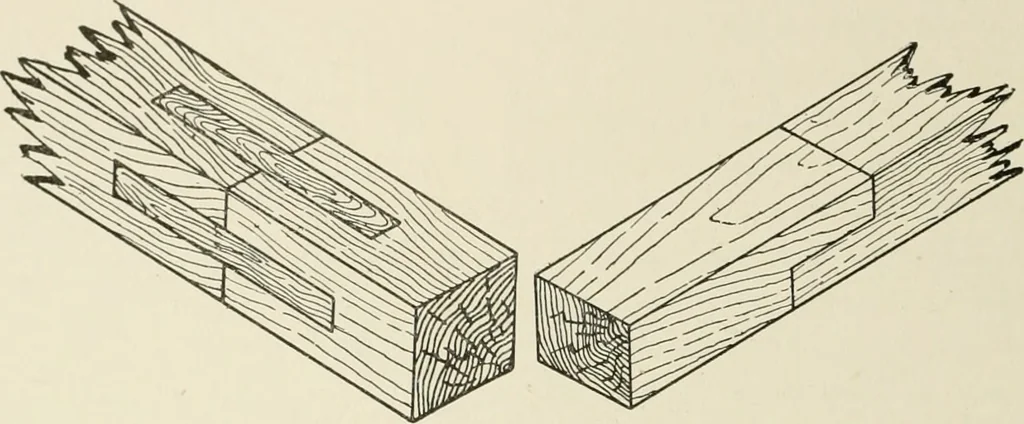

Fig. 54 Splice Fished 65 56 CARPENTRY explanation. A modification of this which is somewhat more effec-tive, is shown in Fig. 57. The cuts are here made on a bevel in sucha way that the parts fit accurately when placed together, and thesplice is called a beveled splice. … Fig. 55. Doweled Splice Fig. 56. Halved Splice The halved splice is perhaps the best that can be used to resistdirect compression, and when it is combined with fish plates andbolts, as shown in Fig. 58, it may be used in cases where some tensionis to be expected. It will be noticed that in Fig. 58…
