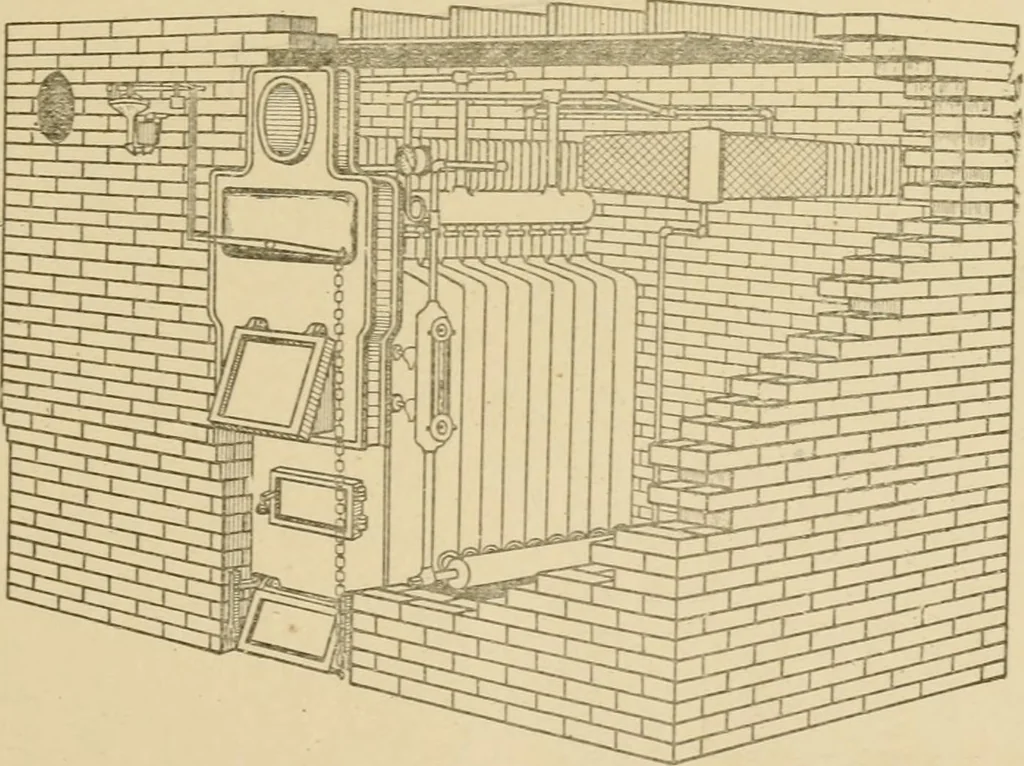

Fig. 5. Vertical Sectional Boiler. try; and certain makers are putting out specially designed boilersfoi- this ser^ice, having a very deep fire-box. Boiler Setting and Foundations. Brick setting of boilers, as … Fig. 6. Boiler iu Brick Seitiug. in the case of furnaces, has been quite generally discarded, exceptin cases where the space around and above the boiler is used as a cen- 139 STEAISI AND HOT WATER FITTING tral heating chamber for indirect systems, tlie radiators l)eing placed above the heater (see…
