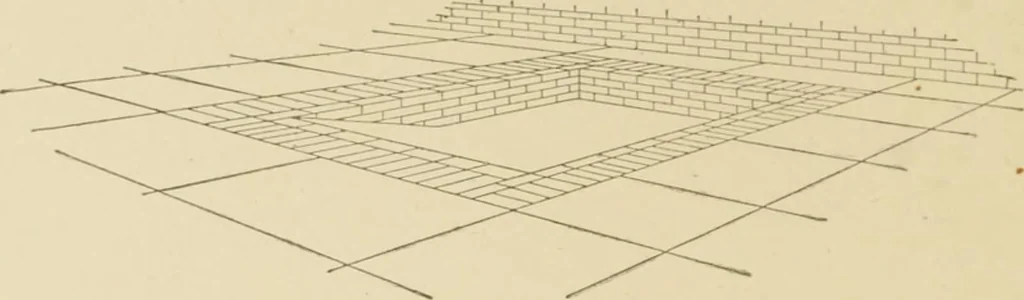

Fig. 6. Boiler iu Brick Seitiug. in the case of furnaces, has been quite generally discarded, exceptin cases where the space around and above the boiler is used as a cen- 139 STEAISI AND HOT WATER FITTING tral heating chamber for indirect systems, tlie radiators l)eing placed above the heater (see… … Fig. 7. Pit for Collection of Hot Ashes. it is a good plan to excavate and build a pit not less than 4 to G inchesbelow the floor, to give additional space for the collection of hot ashes,thus avoiding the burning-out of grates. Such pits should be built preferably of brick, and thebottom should be…
