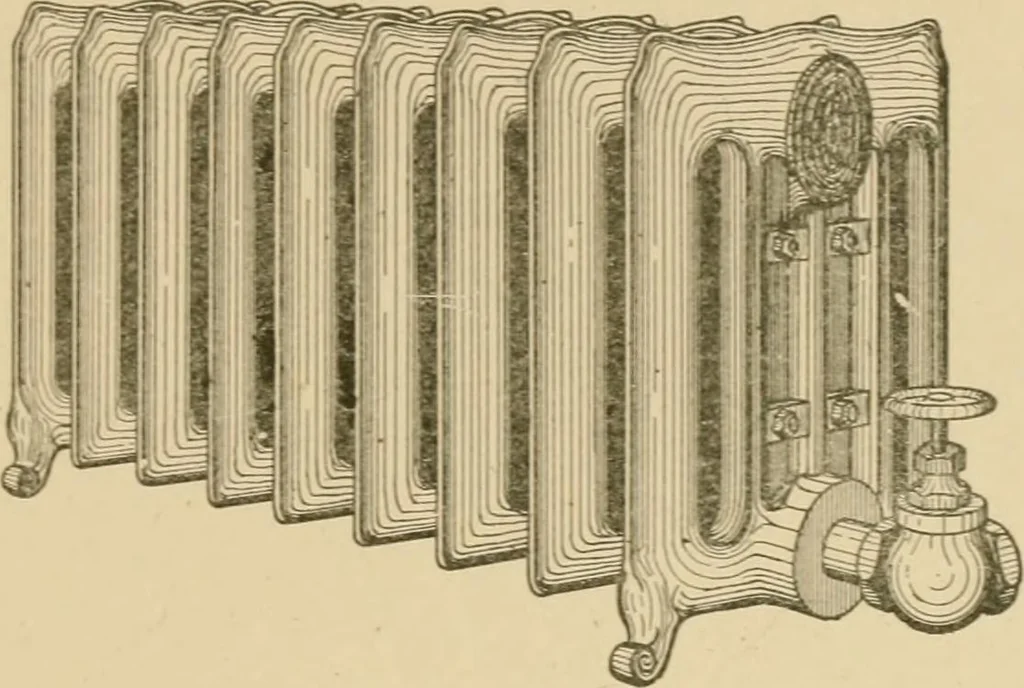

- mg air. STEAM RADIATORS AND COILS Direct Radiators. The commonest forms of radiators to-dayare the cast iron vertical loop varieties, types of which are shownin Figs. 2 and 13 in Part I (Heating and Ventilation). These are 144 STEAM AND HOT WATER FITTING 11 matie up with slip-nipple or… … Fig. 10. Low Radiator to be Placed Below Window Sill. be used when placed below window sills (see Fig. 10). Single-column radiators are more effective than those having a greater number oi vertical loops, since in the latter the air flow is retarded and the outer loops cut off the radiant heat from…
