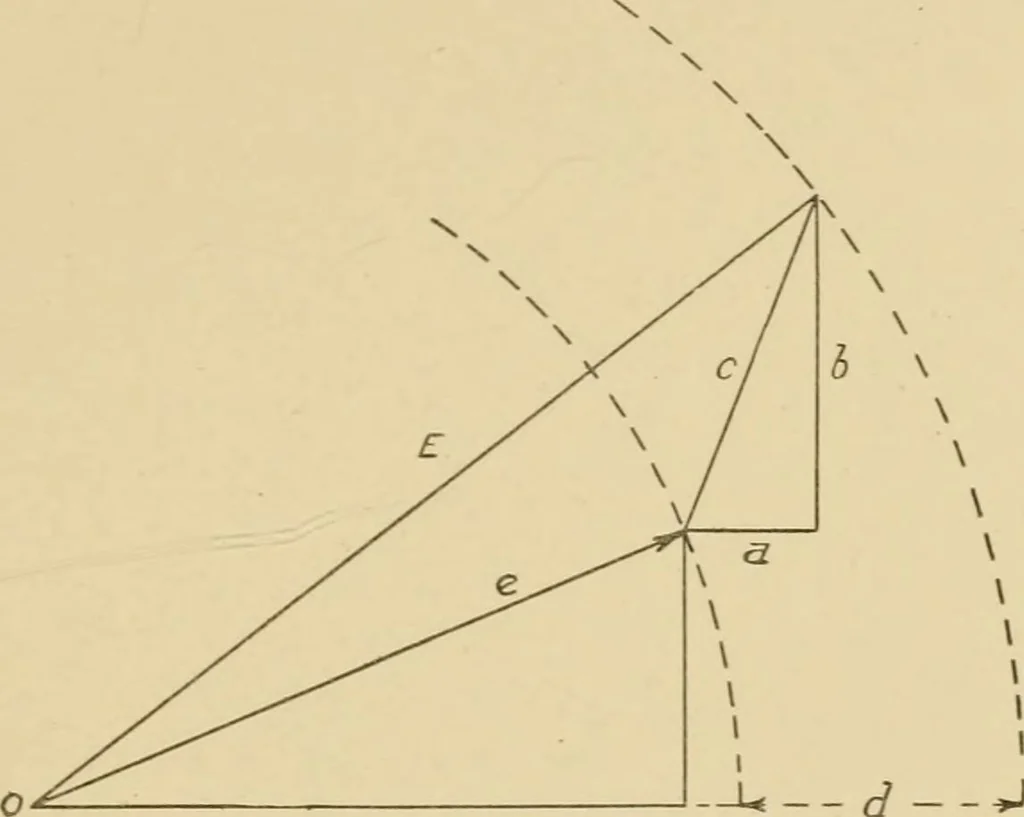

ing the back E. jNI. F. s due to resistance and reactance respectively.The figures given in the table under the heading Resistance-Voltsfor One Ampere, etc. are simply the resistances of 2,000 feet of thevarious sizes of wire. The values given vmder the heading React-ance-Volts, etc., are, a part… … J--*J Fig. 40. Vector Diagram. 24S 46 ELECTRIC WIUIXG
