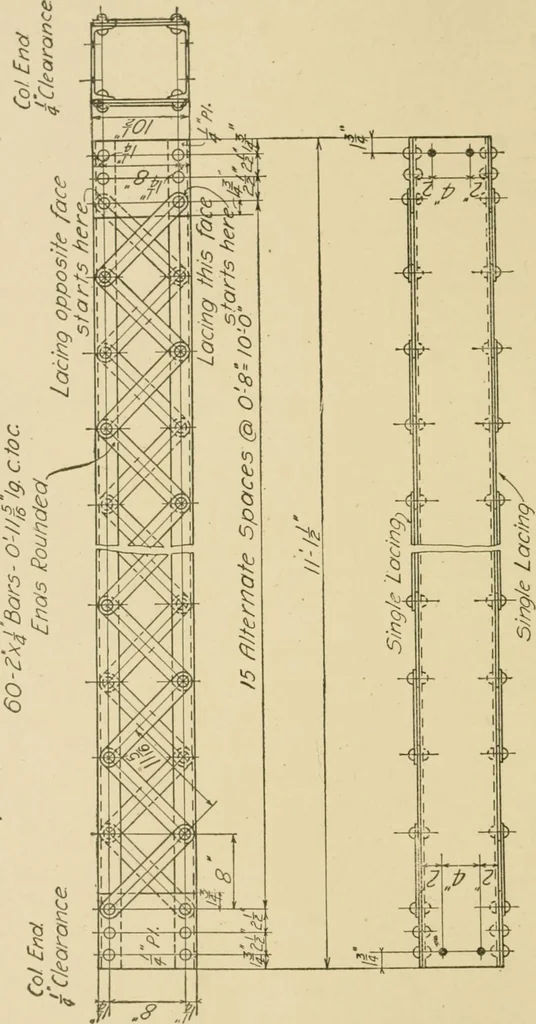

in. from face of each column.Make detail of above. mil Building Columns. Fig. 223 gives the detail of thecolumns shown in Fig. 186, Part II, and by the plate on the precedingpage. This is a latticed channel cohunn. Each flange is doublelaced, that is, it has two systems of lattice bars. In many… … I Fig. 225. 252 STEEL COXSTRUCTIOX 213 ])ar.s on one flange Avould cross those on the opposite flange; just asif one system shown by Fig. ISfJ was on one flange and the otheron the other flanjre.
