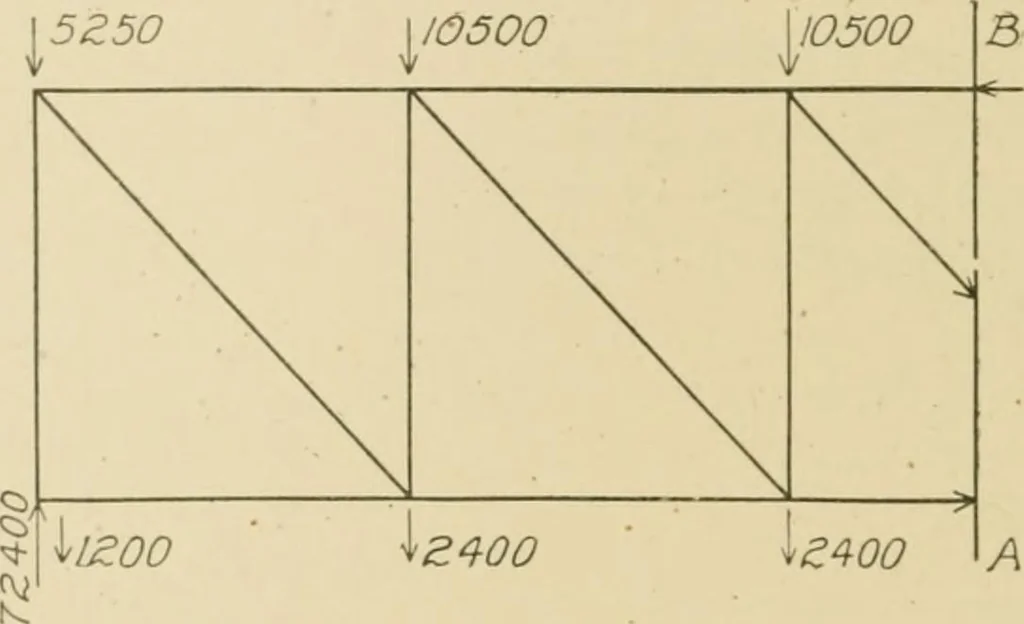

.AB, as shown in Fig. 272. It isevident that, if the truss were then loaded as shown by the diagram,the portions of the top chord on each side of this cut w^ould pushagainst each other, and the portions of the bottom chord on eitherside would tend to pull apart, and the portions of the diagonal… … Fig. 27:5. the reaction of the portion of the truss on one side of the section xA-B,acting upon the portion on the other side along the lines of the differentmembers, which holds the truss in equilibrium. If therefore the por-tion of the truss to the right of AB is considered as taken away, and…
