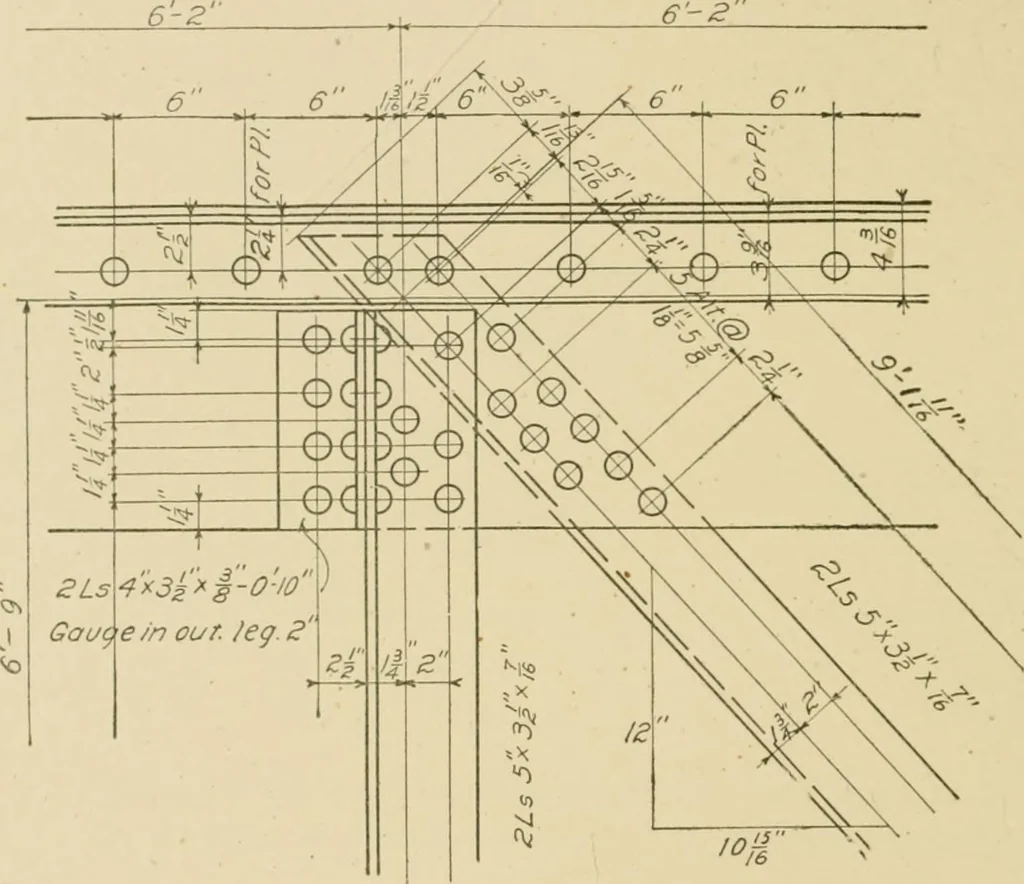

cliord are for securing the roof purlins totlie truss. These purlins run directly across the top chord. Fiff. 280 shows the detail of a truss for a boiler-house roof. Thisroof has a hitrh monitor runninf? down the center, which is also framedwith steel; the detail of this frame is show^n in Fig.… … Fig. 278. frame, however, was .shipped separate from the truss, as indicated bythe open holes for connection to trass. As this monitor frame, ifshipped whole, would be likely to become bent and distorted, it hadto be shipped in two parts, as indicated by the details. Figs. 281 and 282 show the top…
