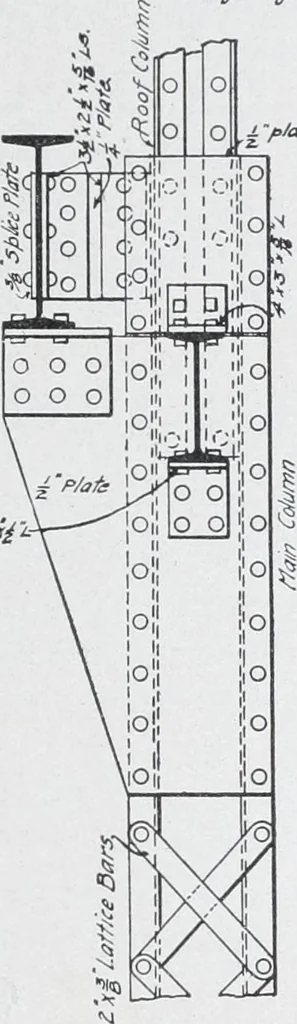

OFFICE BUILDING FOR CHICAGO & NORTHWESTERN RAILWAY COMPANY, CHICAGO Details of wind-bracing construction in basement. Note connection of beams to girders, also girder connection to column. Note that all connections are riveted. STEEL CONSTRUCTION 179 Section of Roof Co/umn l-Web Pixfe.6is§\ . .… … p/ate Sect/on af /ia/n Column. ■^xjigit
