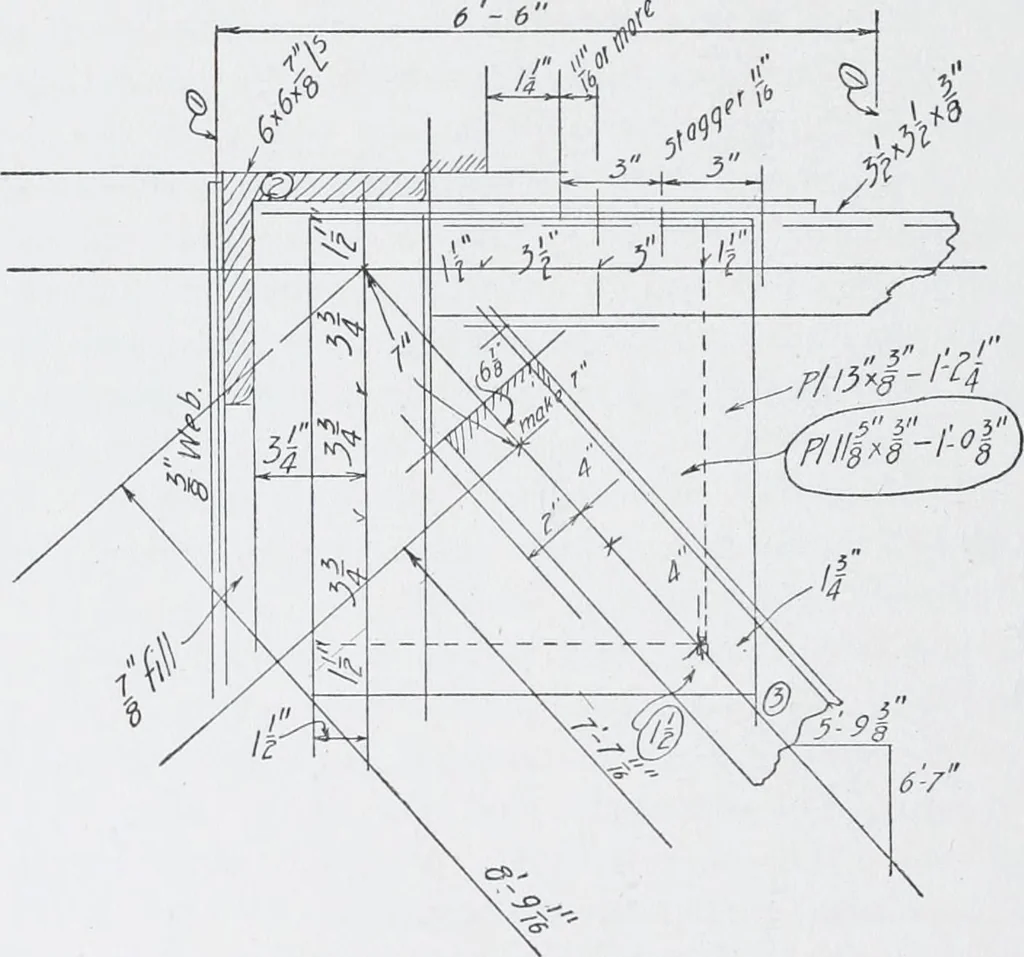

, 88, and 89.) 325 12 STRUCTURAL DRAFTING ORDERING OF MATERIAL S^nce the ordering of material is of great importance it willbe discussed here somewhat at length. Although this is usuallydone by men of considerable experience, yet it is advisable that thedraftsman should know the method of procedure… … Fig. 6. Layout for Detail in Cross-Frame Connection the size and amount of material required for certain members. Inorder to illustrate this, let it be required to determine the size ofthe plates and the length of the angles used in the cross frame ofthe plate girder shown on Plate VI. Here the…
