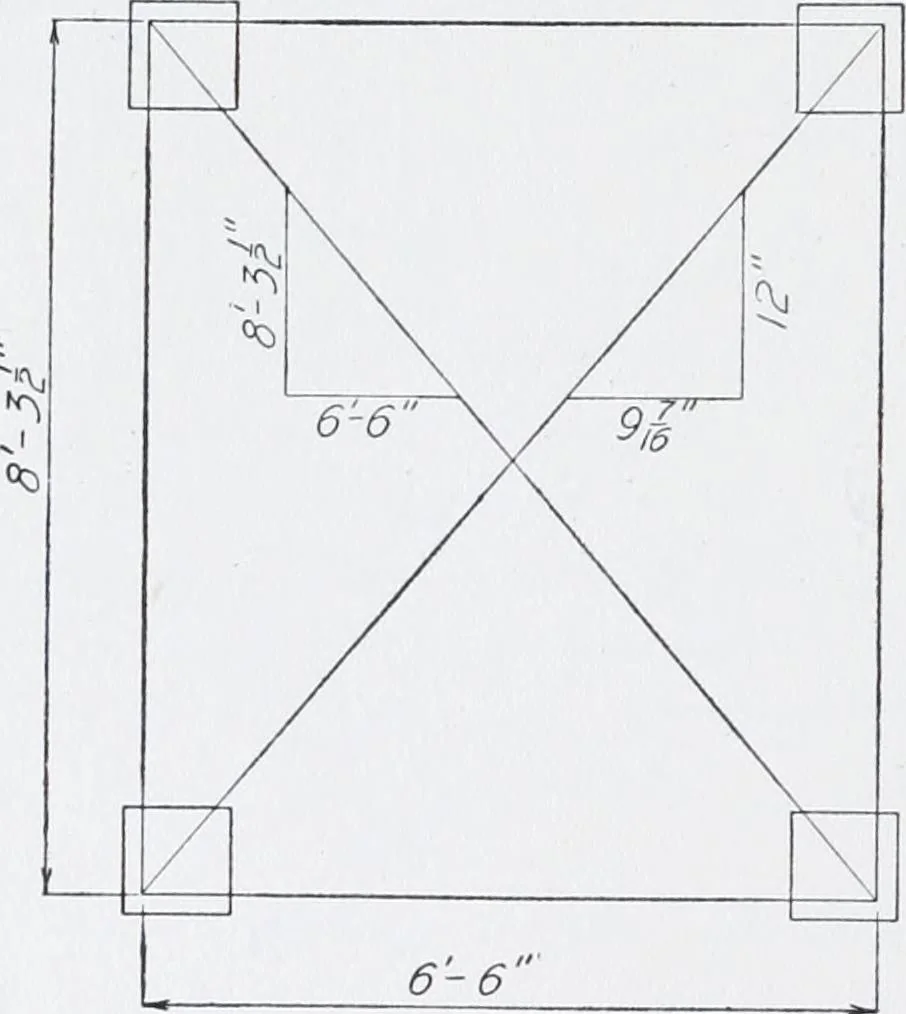

ented by the full dimensions or by taking the longest sideas 12 inches and the other as 9.41 inches, or 9i^ inches, since it is unnecessary to get the bevelcloser than the nearest six-teenth. The value 9.41 iscomputed as follows: Y _ G-612 ~ 8-3i Y = 9.41 The method of indicat-ing the bevel in feet… … Fig. 55. Method of Indicating the Bevel order to lay it out. The smaller valueswhich can be worked on a bench. The number of rivets required in the connection plate in anydirection must be sufficient to withstand the component of themain member attached to the plate. This can be easily determinedby…
