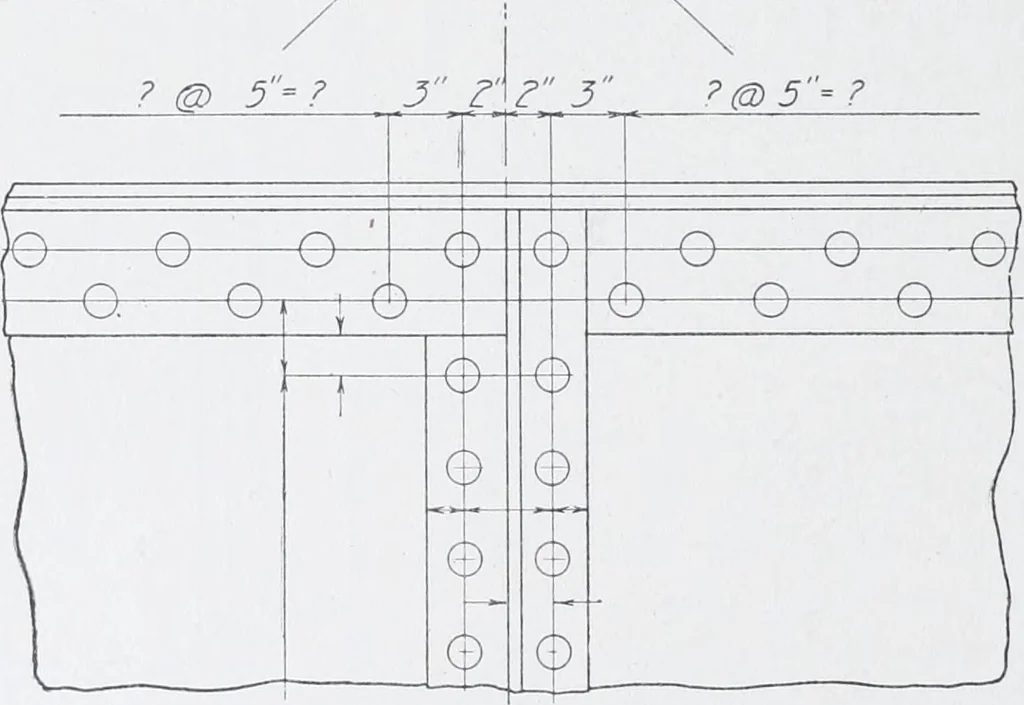

e -Q e—^t^—e / Q (D—Q (Dy<D I (D^v (t)—0-0 0 … y^ Center line of Girder Fig. 73. Method of Detailing Rivet Spacing with Flange Angles what the thickness may be, since by this operation the rivets in thehorizontal flange, providing that is a double-gauge line, may bemore advantageously spaced on account of the fact that the requiredstagger will…
