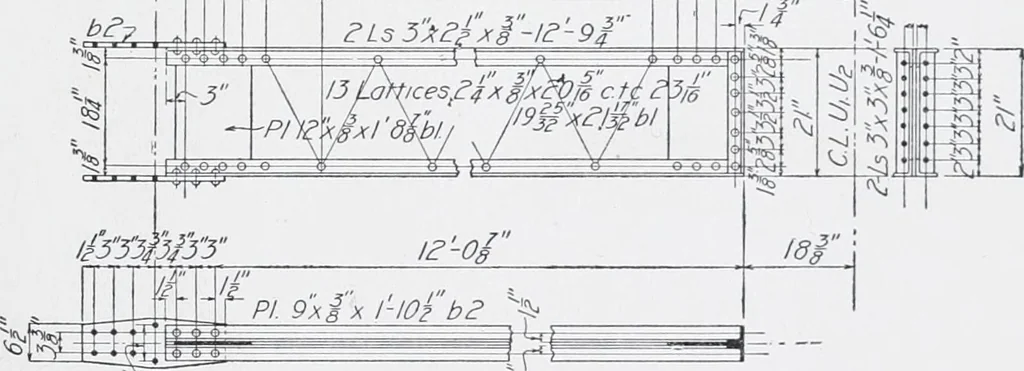

rances required in orderthat each member may fit in with the adjacent ones in the structure,should receive the most careful consideration. The compression members consisting of two angles rivetedshould be riveted together at distances throughout their length notgreater than 12 inches. The clauses… … Fig. 82. Detail of Compression Member Where Angles are Latticed bers of two angles are the same as those required in diagonals ofplate girders. The spacing of the rivets which rivet the anglestogether need not be given but noted as Rivets spaced about 12 425 112 STRUCTURAL DRAFTING inches centers.…
