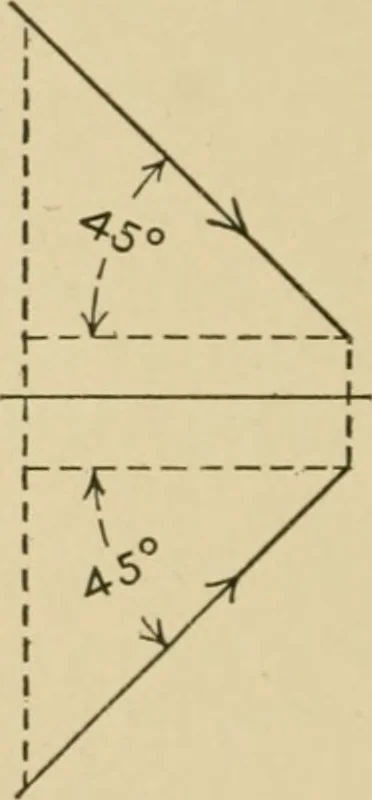

Fig. 20.we may use the 45° triangle with the T-square to determinethe liglit and dark surfaces, and hence the shade lines. Ifthe object stands on the horizontal phme, the 45° triangle is usedon the plan, as shown in Fig. 21, but if the lengtli is perpen-dicular to tlie vertical plane, the 45°…
