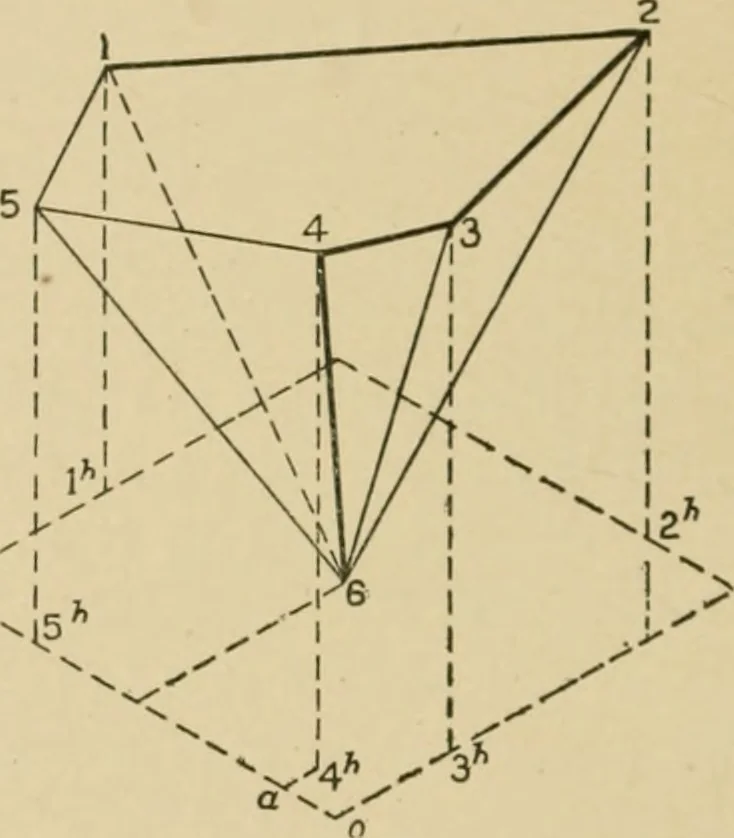

Pig. 62. Fig. 61. The horizontal projection of jx^int 3 is found in isometric at 3, atthe same distance from o as in the jjlan. Tliat is, any distancewhich in plan is parallel to a side of the circumscrihing rectangle,is shown in iso?neiriG i?i its true length and parallel to the corre-sponding…
