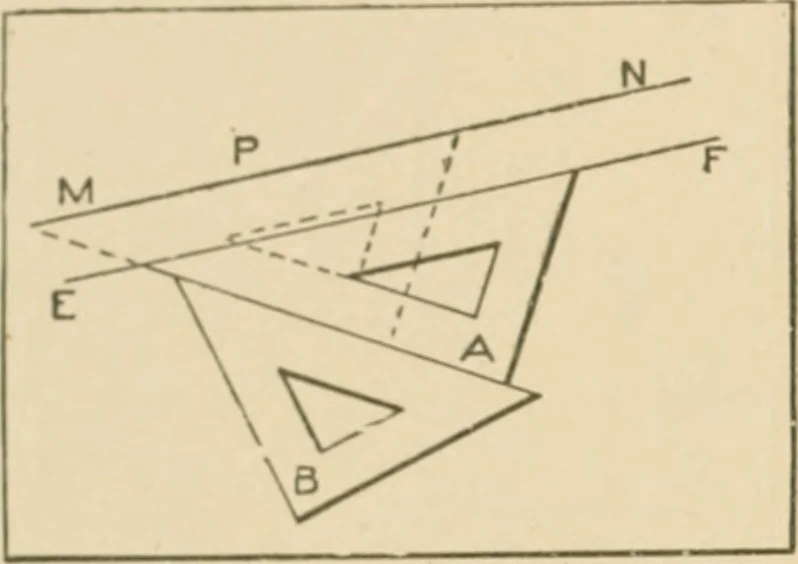

14. In using the triangles and T-square almost any line may bedra\vn. Suppose we \vish to draw a rectangle havmg one side /— o o o • 0 0 o o o Fig. 11. 19 12 MECHANICAL DRAWING. hoiizontal. Kii-st place the T-square as shown in Fig. 15. Bymoving tl>o T-square up or down, the sides A V> and D…
