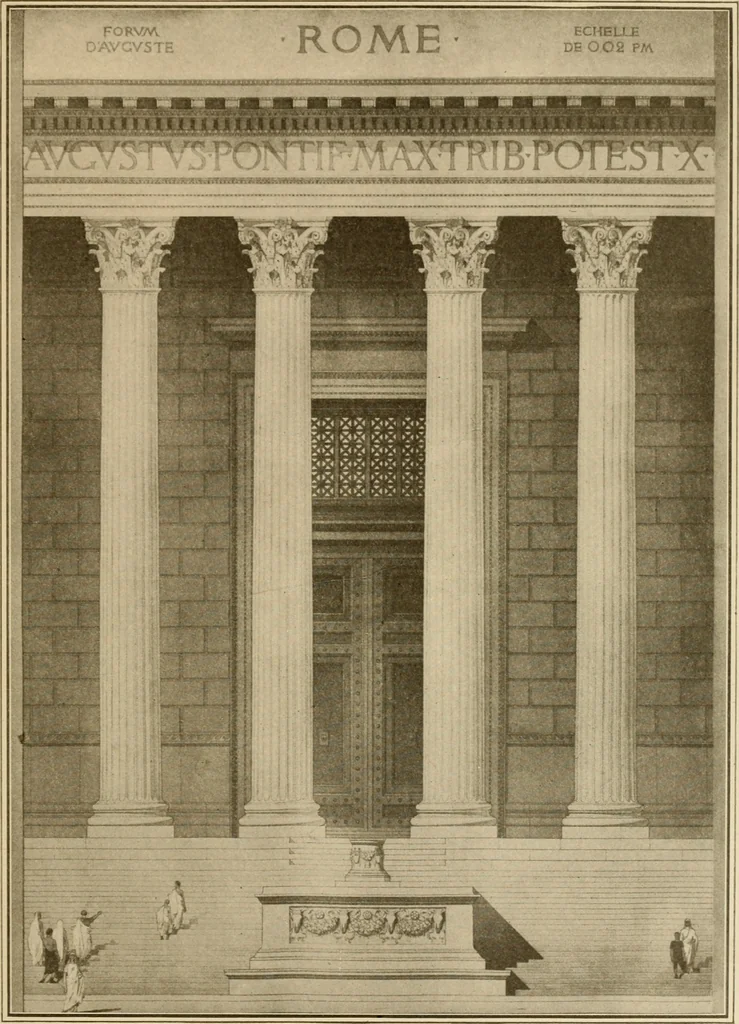

-dicular to the planes of projection. This method has two advantages; the laying out is easier, whichit is well to consider, for the drawing of shadows is often a long andcomplicated process, and in this case the depth of the shadows isefjual to the projections. Consecjuently, the size of the… … DETAIL, FROM TEMPLE OF MARS VENGEUR.An example of classic lettering, conventional shadows and rendering. Reproduced by peimisxion of Afasxachiisetts Institute q^Tecknology.
