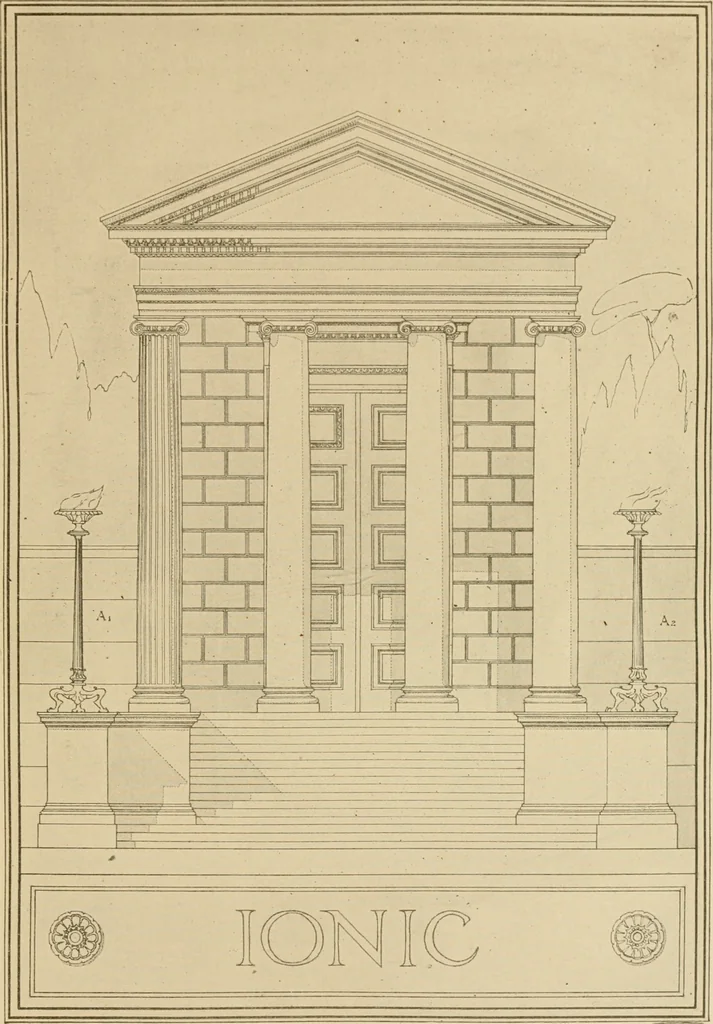

l as for the rendering, of the steps. The shadows on thesteps will be similar in grading to the shadow of the altar on thesteps. The bronze candelabra is to be rendered dark, care beingtaken to leave hio-h lights of White on the round surfacesreceiving the most direct light. For suggestions for… … PLATE E 58 ARCHITECTURAL DRAWING Lay it out by axes in the manner (lescril)ed. Study carefully so youmay understand why axes are used. 15. Draw the capital and entablature shown in Fig. 9 at doublesize in accordance with the directions. 16. Draw the balluster shown in Fig. 10 at double the size…
