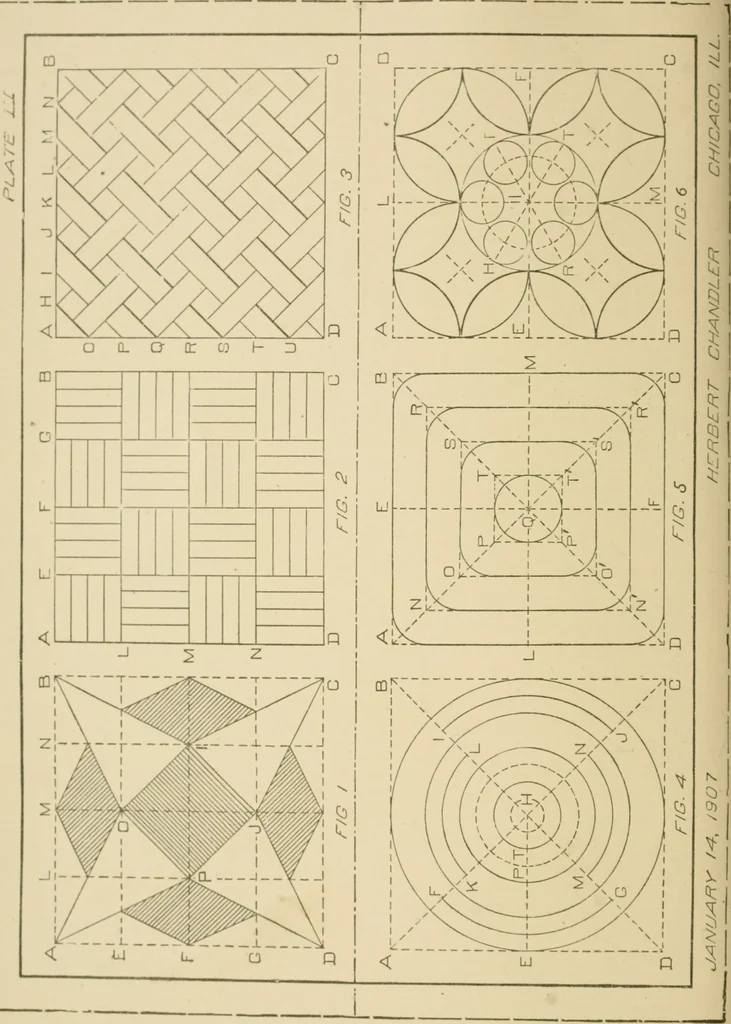

. Nowmark off on E H distances of | inch. With the compasses set sothat the point of tiie lead is 2 inches from the needle point, de-scribe the circle p:vssing through E. With H as a center drawthe arcs FG aiul I J having a radius of 1| inches. In drawingthese arcs be careful not to go beyond the… … MECHANICAL DRAWING. 37 radius being 1} inches. Now draw circles, with H as the center,of 1; |, i and I inch radius, passing through the points P, T, etc.Figlo is an exercise with the hne pen and compasses. Firstdraw the diagonals A C and D B, the horizontal line L M and thevertical line E F passing…
