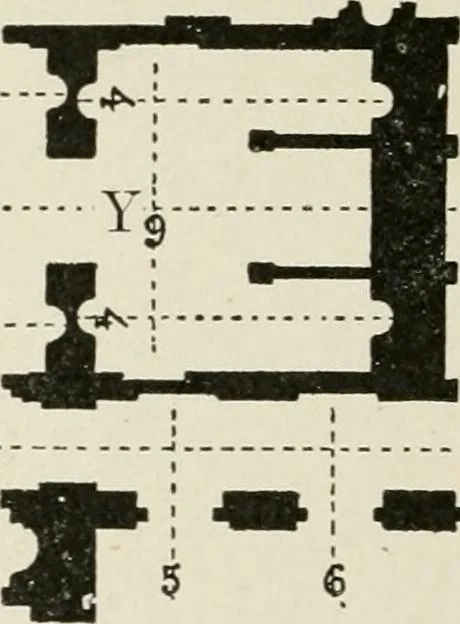

these draw first the extremeaxes, 2 2; by dividing the space between axes 1 and 2 into equal parts,the intermediate axes 3 3, will be found. In this way the chances oferror would be decreased, for if the axes were placed in the order1, 3, 2, the possible error would be doubled. Now taking the… … X 3 Fig. 6. Plan of Vestibule of Hotel des Monnaies. Now consider the axes of the rows of columns 7 7. These areto be arranged in relation tp the axes 3 3; finally the axes 8 8 arelocated in relation to the extreme axes 7 7, being checked in relationto the axes 2 2. In the longitudinal direction…
