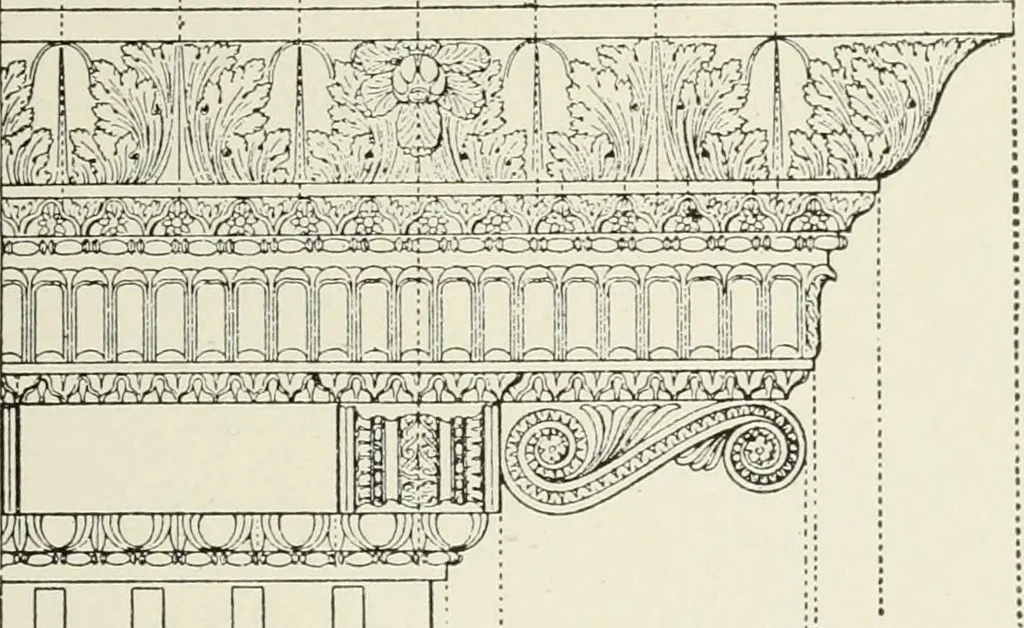

very useful, for that study includes the planes of projection andplanes of development. Wliile there is some little difficulty, there is also much profit tobe gained in projecting an architectural motive at an angle. In orderto project a motive at an angle correctly, one must understand themotive… … JUiiUUlLiiUiiUiUiUJiiUiUi mmm^^Mmm. Fig. 11. Entablature from the Temple of Concord, Rome. It is recommended, therefore, as a very useful exercise to drawout in oblique projections, designs that are made in direct elevation;it is a good exercise in design, but above all it is an excellent…
