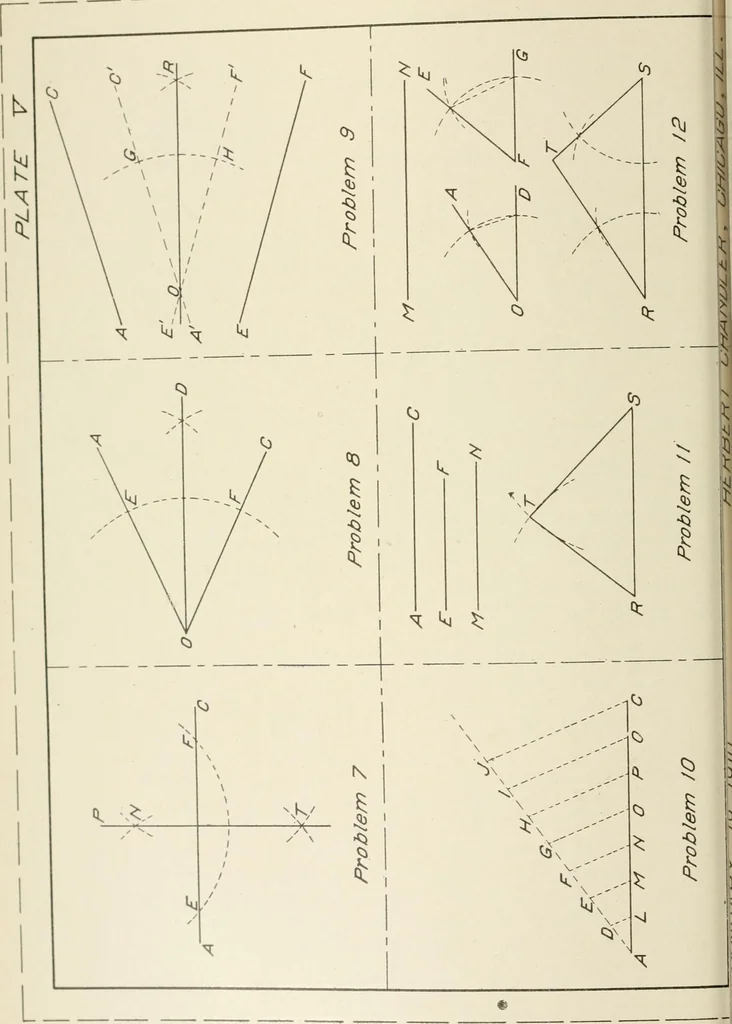

, make the sides of the angles full lines and the chordL M and the arcs dotted. Follow the same plan in inking the linesof Problems 3, 4, 5, and 6. In Problem 6, ink in only that part oftbe circumference which passes through the points 0, P, and E. 62 ^ Ci \<: b ^- \ ~ ,^ ~~^ \ / \ ^ f<j… … MECHANICAL DRAWING 49 After inking the figures, ink in the heavy border line, and thelettering. PLATE V Penciling. In laying out the border lines and center linesfollow the directions given for Plate IV. Draw the dot and dashlines in the same manner, as there arie to be six problems on this plate.…
