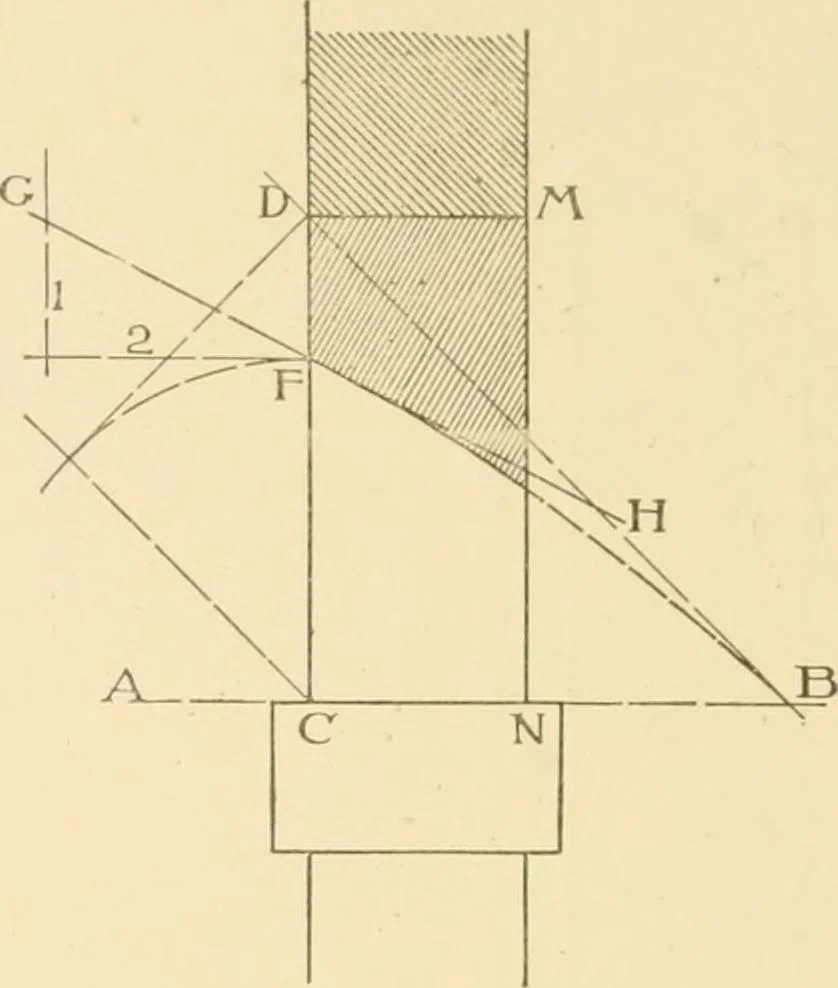

E D Locate the point o on the axis 1^ inches below cih. With 211 42 SHADES AND SHADOWS … ^ as a center, and radius equal to ^ inch describe the arc innji>^ the required shadow. • x^,^ .^ 93. Problem XXVI. To con= struct the shadow of a verti= cal line on a series of mould= ings which are parallel to the ground line. The shadow reproduces the actual profile of the mouldings.Given a…
