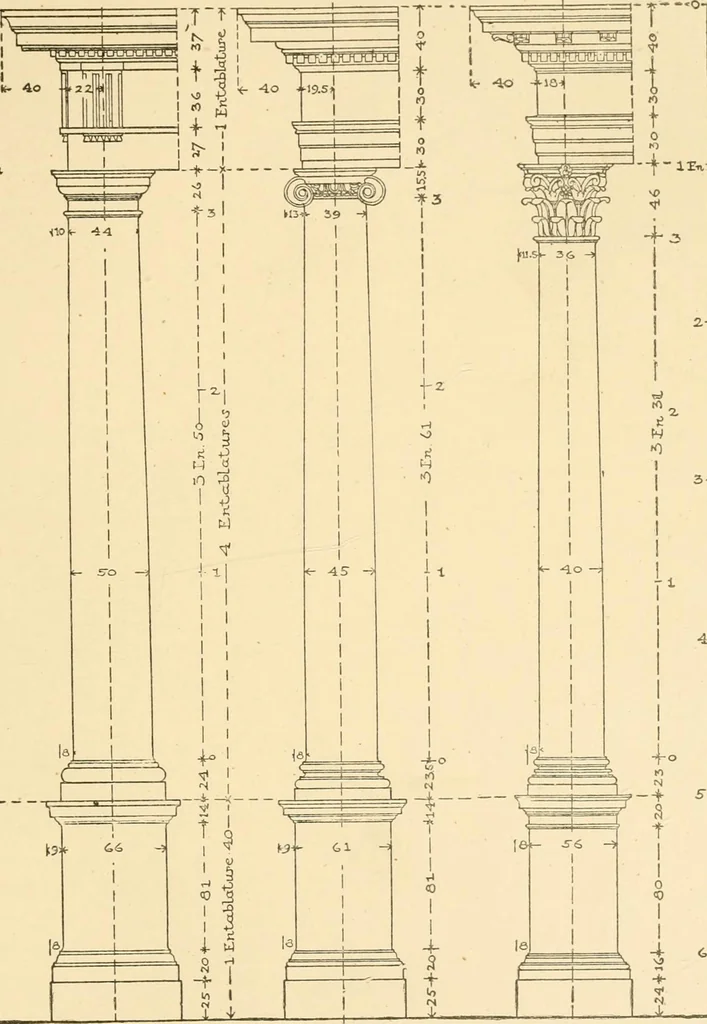

orders have oneproportion in common, viz.: therelation of the height of the colunnito the height of the entablature.The entablature in all five ordersis one quarter the column height.The height of the column in anyorder is therefore the height offour entablatures, and the heightof the entablature,… … . 1 ■ i■3■4 -y-6 ■ 7-8•9 . lo 4.-- DORIC- aONIO CDHNT^WSr- PLATE I.(A reproduction at small size of Portfolio Plate I.) THE ROMxVN ORDERS 13 parts establishes a scale which may bo used in determining theproper proportions of all parts of the order. This scale unit iscalled the Entablature or En and…
