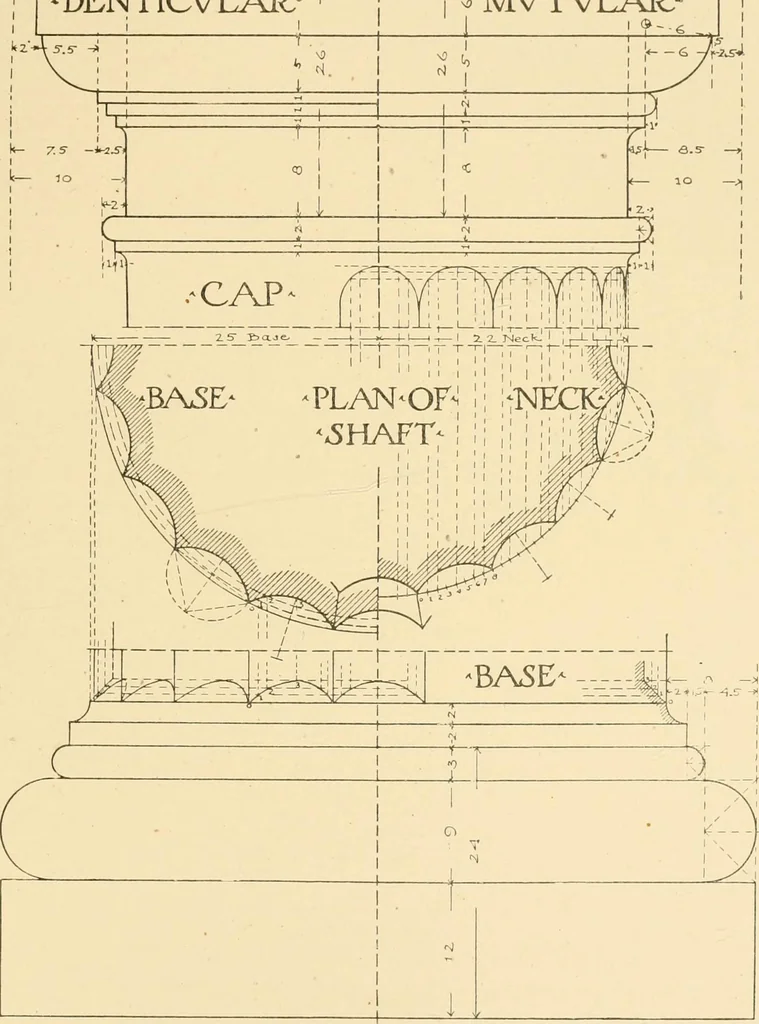

. The head or upper part of each channel is a semi-circle, while the foot rests on a plane inclined at forty-five degrees.In drawing a channeled column there is but one channelseen in direct front elevation, the others follow the curvature ofthe shaft, and are drawn according to their positions on… … DENTICVLAR.^ 0>ve rtalf Zft. ^MVTVLAR^ l^. . . . i \0 K^ ^jO 2.S 3.0 3,5 4j=> -4,5 ^,0 I I I J I I I I I I i I I I I I I ] I I r I I I 1^1 I I I I I r I I I I I I J I Ti -■ I I I I I I I I r PLATE III. (A reproduction at small size of Portfolio Plate HI.) THE ROMAN ORDERS 17 Thus, to obtain…
