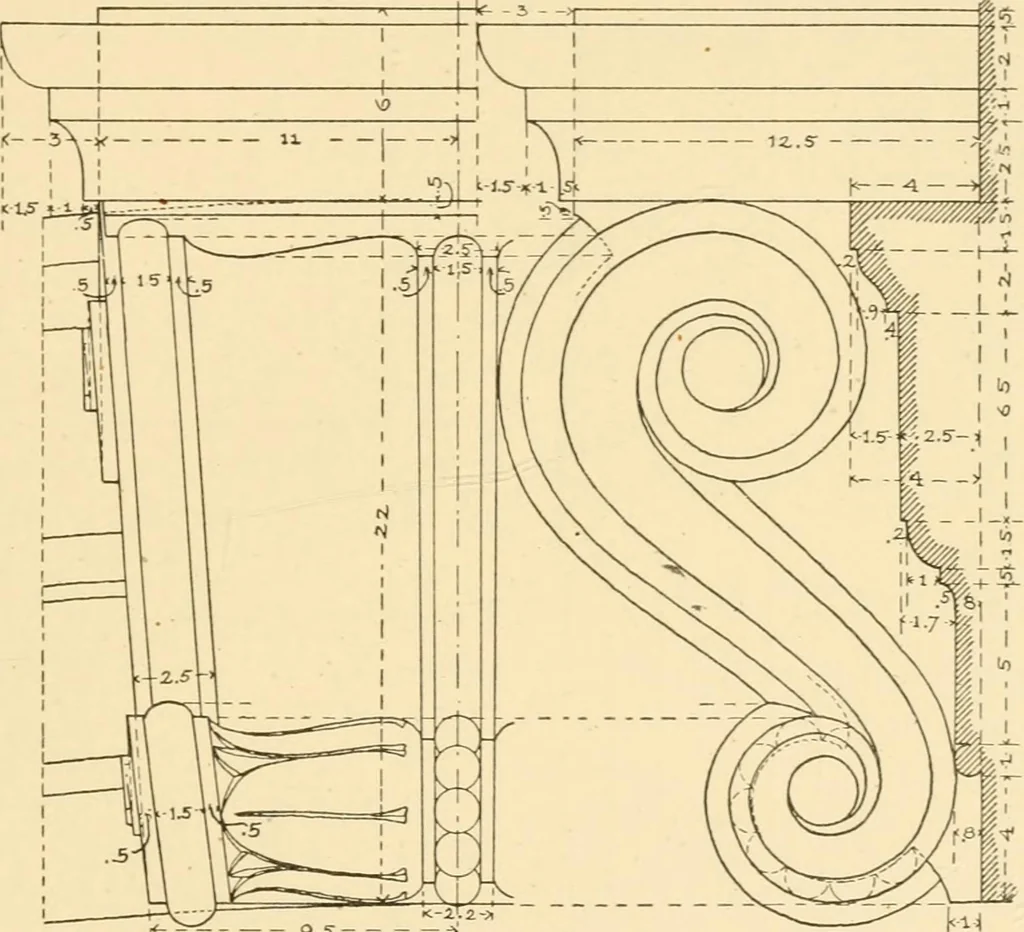

rc PEDE5TAL^ & - 1MP03T PLATE XIX.(A reproduction at small size of Portfolio Plate XIX.) THE ROMAN ORDERS 37 99. The archivolt is composed of three fascias, a bead andquarter-round with a fillet, and a cyma-reversa with fillet. Itswidth is twenty-two parts; the first fascia four; bead one;… … * One. -^uo/Cer Z,tu • Fig. 16. 100. The channels of the Corinthian column are twenty-fourin nimiber. The width of the fillet which separates them is one-third of the channel width. The width of a pier of the arcade isequal to the width of a column plus two archivolts which is eighty-four parts.…
