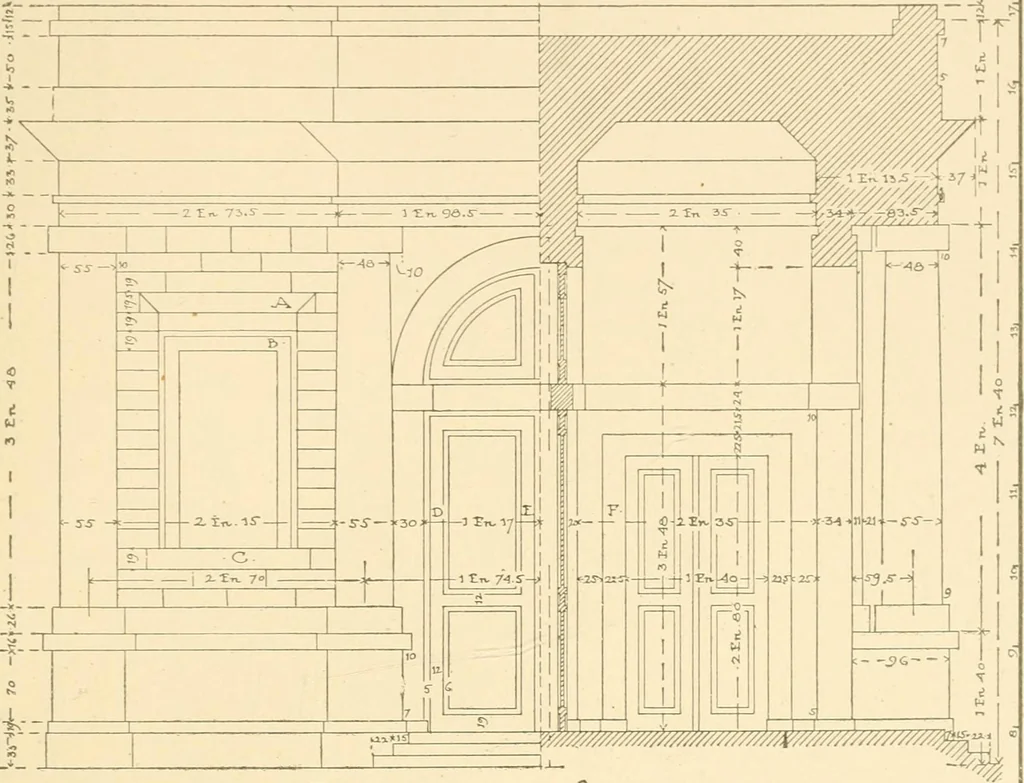

ec-tively. Fig. 4 should be drawn to the size shown in the margin,each unit representing one inch. Thereof ore the finished plateswill be 10 X 14 in size. Plate B should be an accurate copy ofPlate 11. Leave out dimensions. PLATE C. 137. The sheet of mouldings shown in Fig. 5, is to be redrawnon a… … Elevation - - Jection -
