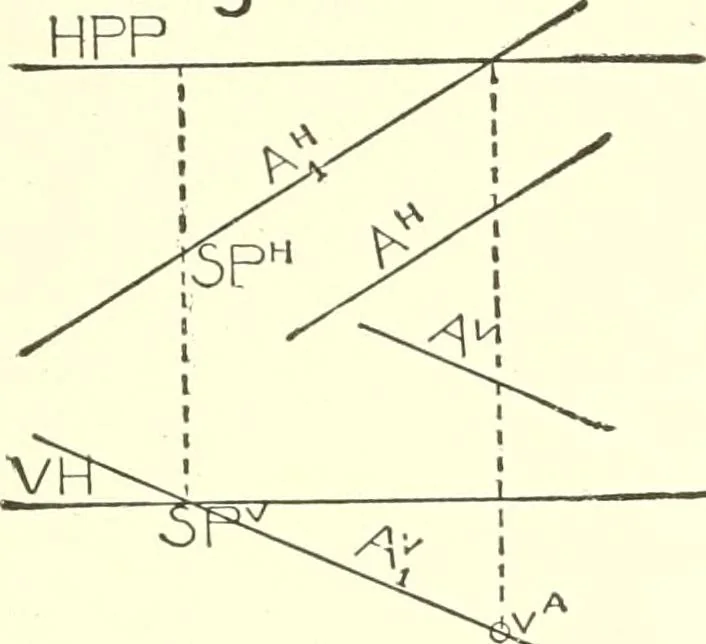

been found by Problem I. at h^. Theline (A^), joining a^ and 6^, will be the perspective of the givenline. (See note under § 23.) 98 PEESPECTIVE DRAWING. 25 50. PROBLEM III. Fig. 16. Having given the verticaland horizontal projection of any line, to find the perspective ofits vanishing point. Let… … HPP Fig. 17
