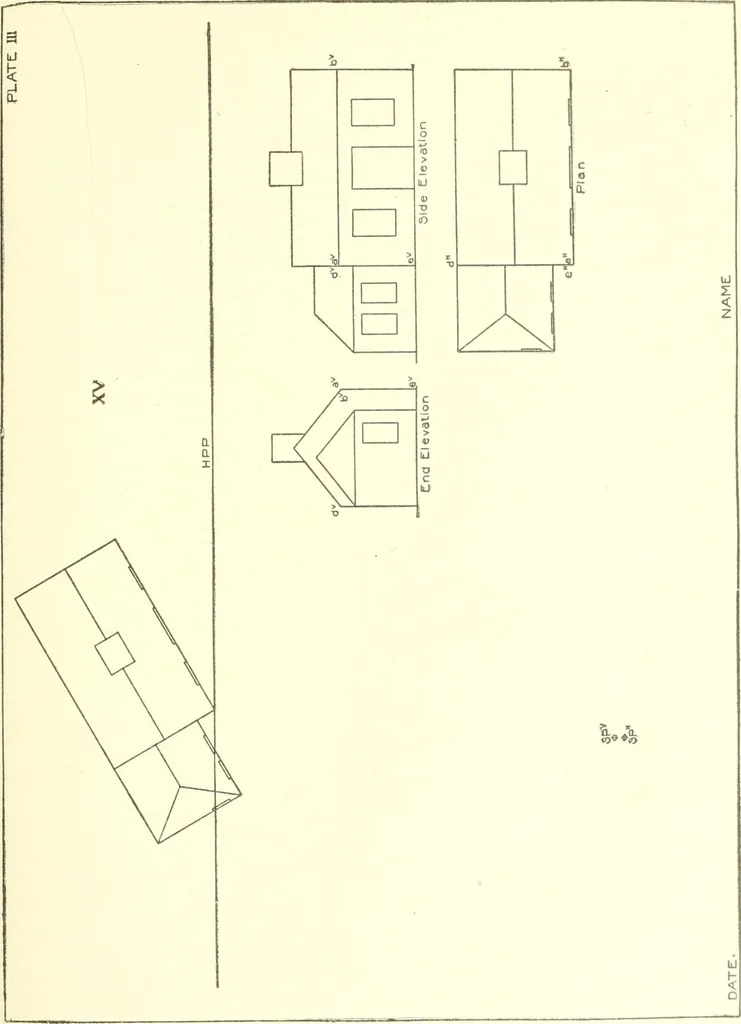

6lo n^lr txlp mi<^ h*- a Plan ^ DATe NAME … PERSPECTIVE DRAWING. 69 PLATE IV. PROBLEM XVI. The plate shows the phin, front, and side elevationG of ahouse. In order to assist the student in understanding thesedrawings, an oblique projection (at one-half scale) is given, withthe visible lines and planes lettered to agree with those in theplan…
