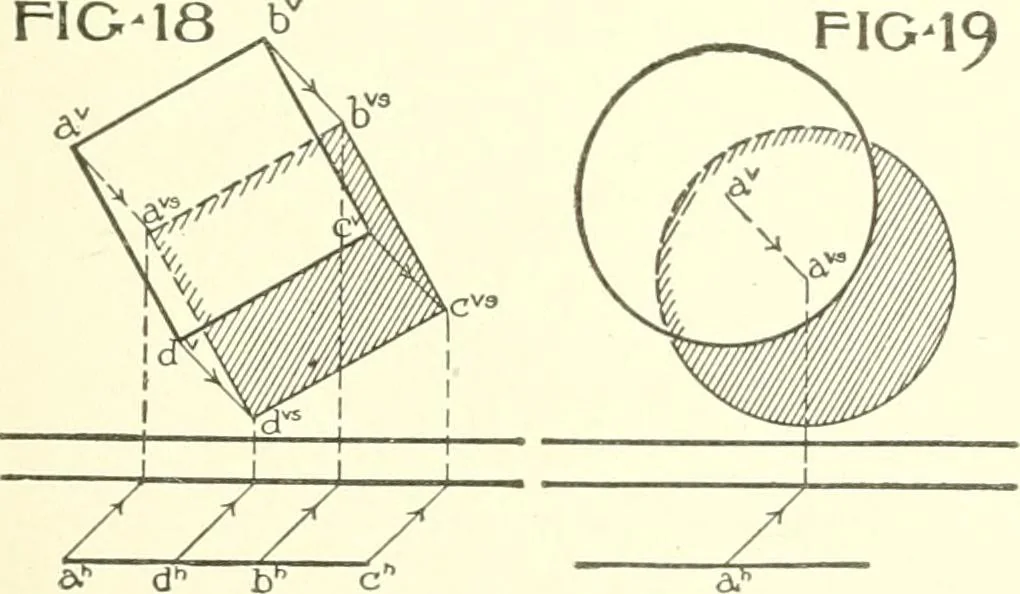

iscross-hatched along theedge of the shadow only.This method of indicat-ing; actual shadowswhich are hidden bythe object is to be fol-lowed in working out the problems of the examination plates. 37. Fig. 18 shows the construction of the shadow of a plane on the co-ordinate plane to which the given… … 181 12 SHADES AND SHADOU^S co-ordinate planes, it is only necessary to find the_ sliadow of thecenter of the circle and with that point as a center construct acircle of the same radius as that of the given circle. NOTE: 39. Any point, line, or plane lying in a surface is considered to be itsown…
