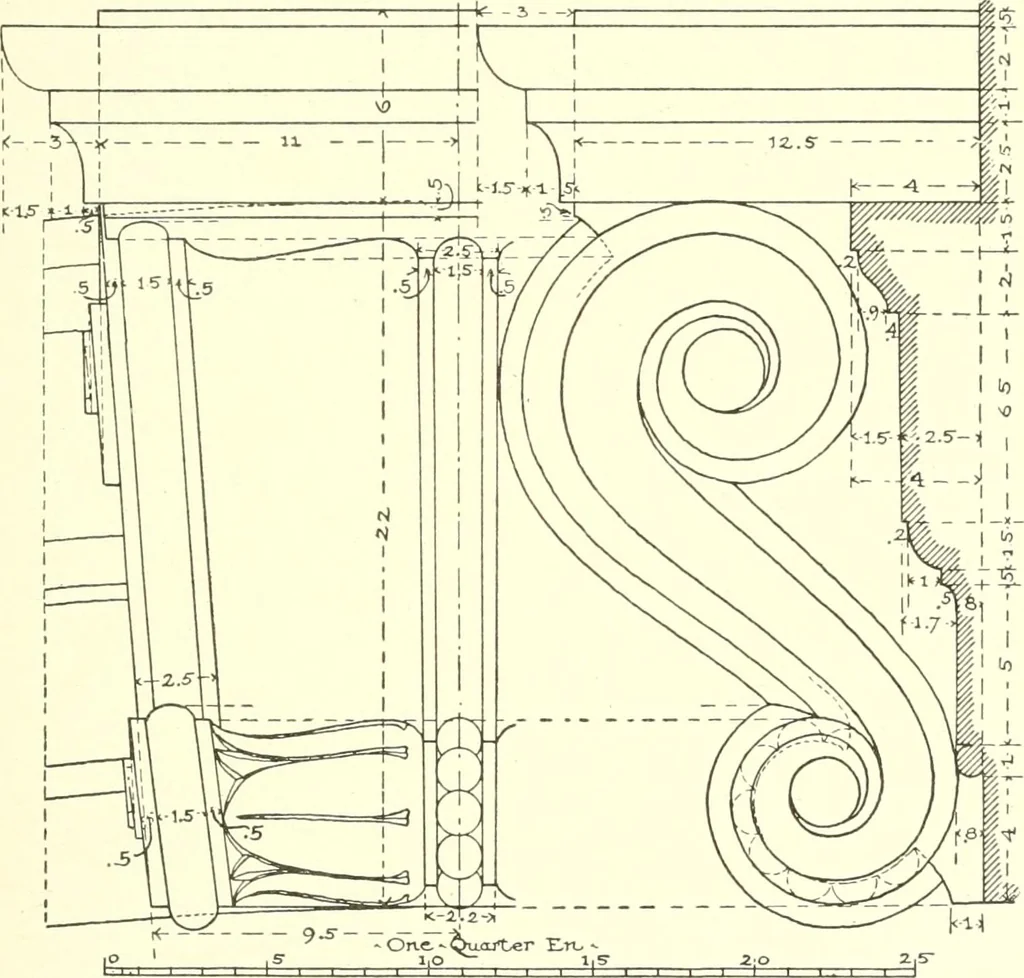

TAL^ & ^ IMP05T PLATE XIX.(A reproduction at small size of Portfolio Plate XIX.) 1 THE ROMAN ORDERS 37 99. The archivolt is composed of three fascias, a bead and(quarter-round with a fillet, and a cyma-reversa with fillet. Itswidth is twenty-two ijarts; the first fascia four; bead one;… … Fig. 16. 100. The channels of the Corinthian column are twenty-fourin number. The width of the fillet which separates them is one-third of the channel width. The width of a pier of the arcade isequal to the width of a column plus two archivolts which is eighty-four i)arts. 101. The Corinthian…
