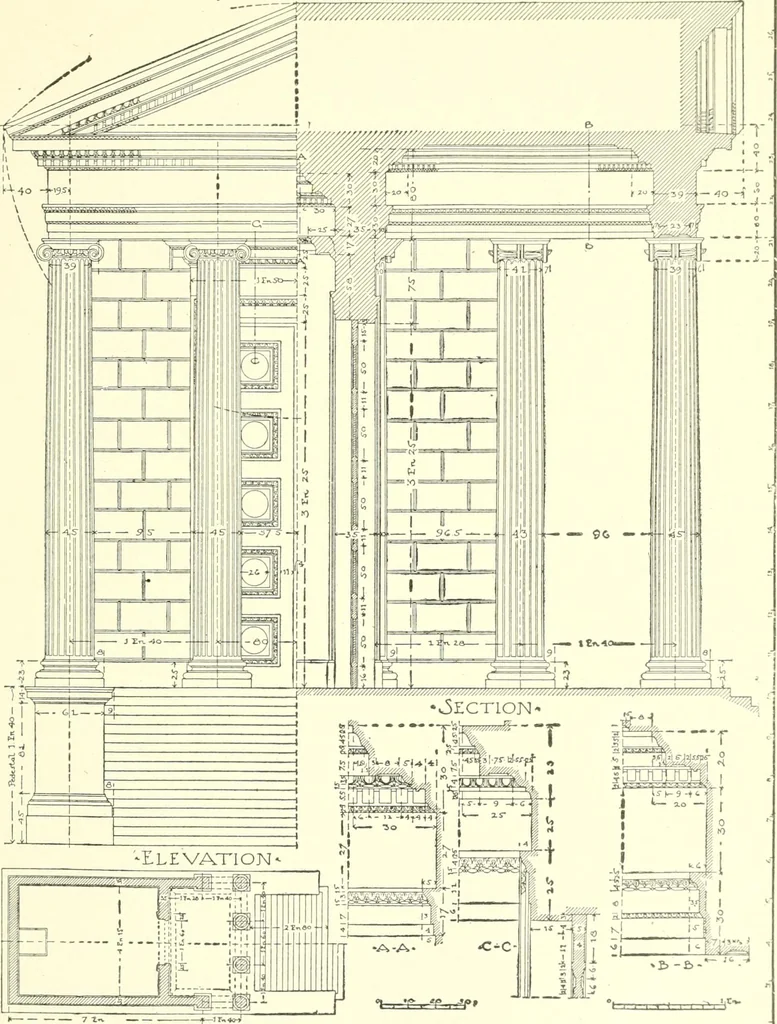

the point C (section) to C (i3lan) and drawthe quarter circle C on which CD will give the height of thesecond row of caissons which will be laid off from C to D alongthe curve in the section. Continue this operation up to the fifthrow of caissons. As to the widths of the coffers, they are found… … -Plan • <TEMPLE>WnHPORTlCX? PLATE XXXIII.(A reproduction al small size of Por,rollo Plate XXXIII.)
