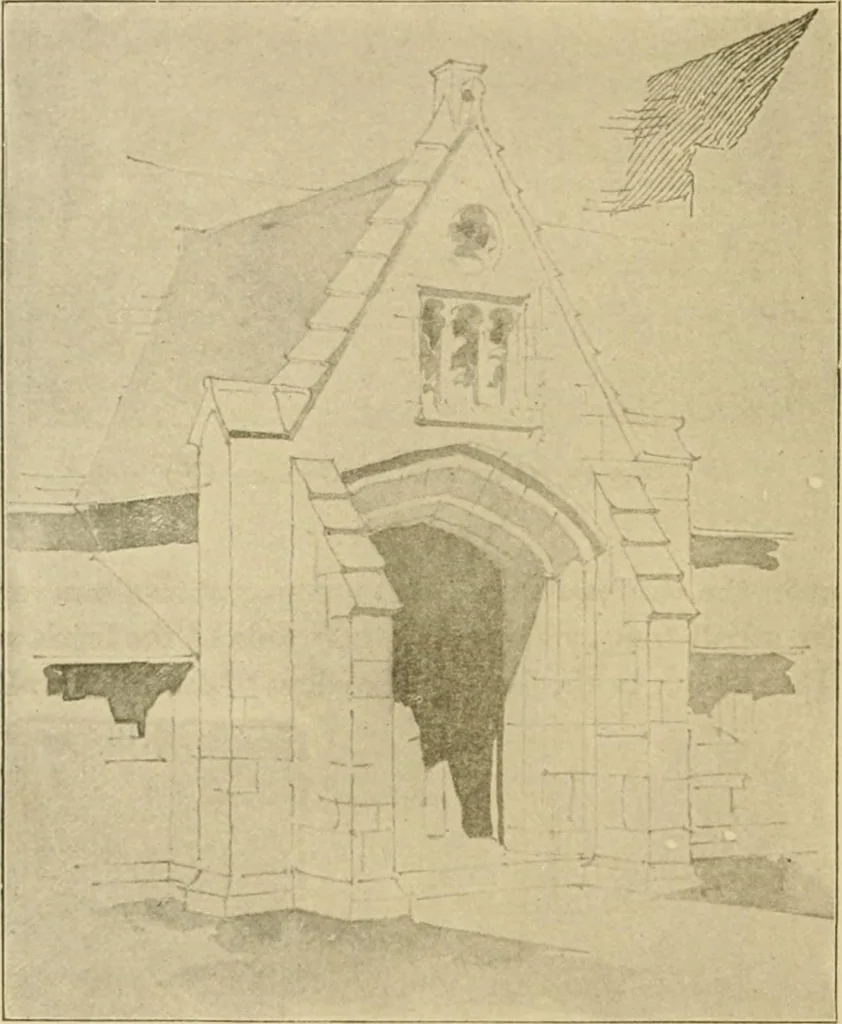

For Plate V.) jour rendering make the edge as shown in Fig. 18. An outline insuch a place produces a mechanical looking rendering, as is seen inthe illustration. Outlining is absolutely necessary where there 343 oo KENDErj:NG is no rendering, but in connection with it, omit tlie outline, if… … Fig. E. (For Plate VI.) grass, which may be rendered as illustrated in the two precedingexamples, gives also an additional half-tone value. To retain orproduce a large light area, the stone jointing should be omitted onthe upper portion of the wall, as indicated in the scheme. Theroof may be…
