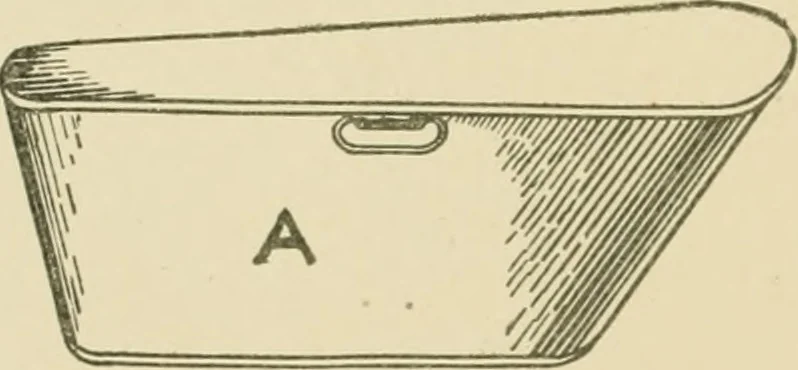

to 1| inches draw the semicircle A W B. At the upper endof the bath the flare will be miequal; therefore from h measure adistance on line W 8 of 1 inch and obtain c, which use as center,and with a radius equal to 2 inches describe the arc F 8 G. Drawlines from F to A and from B to G; and A F 8 G B… … 02 SHEET-METAL WORK 33 from K to R, and J K R. I will be the side elevation of the bath tub.In constrncting the bath in practice, seams are located at H G, F E,
