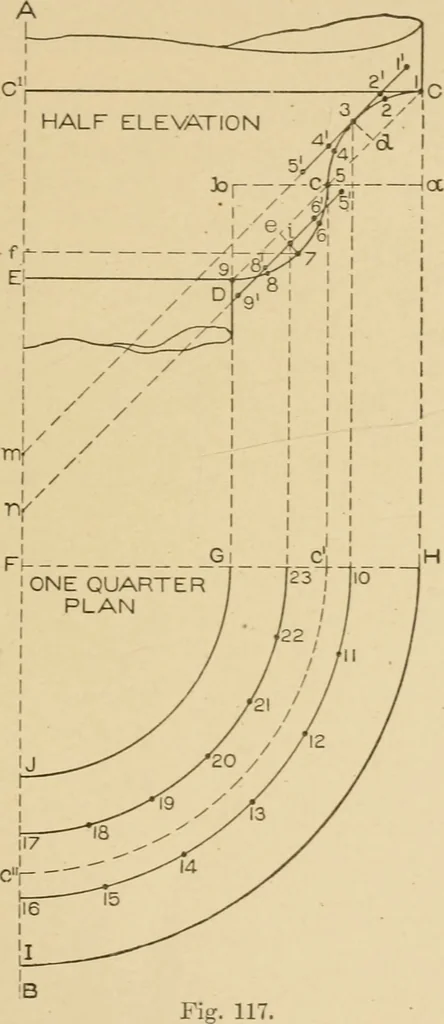

the quarter circlesshown completing the ogee.In the quarter plan belowwhich is struck from the cen-ter F, G J and H I are sec-tions respectively on D E andC C in elevation. The meth-odsof obtainingthepatternsinthis case are slightlv differentthan those employed in the previous problems. The upper… … 181 no SHEET METAL WOKK edges must be stretched so as to obtain more material to allow themetal to increase in diameter and conform to the desired shapeshown from 1 to 8 and 3 to 5. In the lower curve the oppositemethod must be emplo3^ed. While in the upper curve the edgeshad to be stretched .to…
