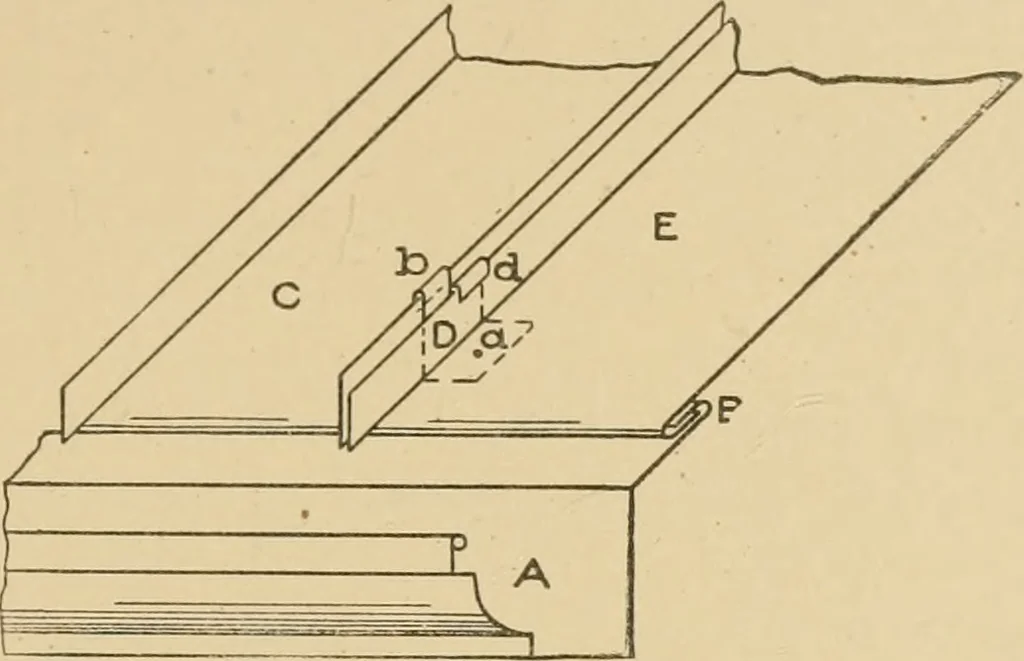

FiR. 221. i .J ^¥ -H WCLEAl 258 SHEET METAL WORK 179 gutter bein^ fastenetl in position by means of cleats under thelock B—the same as in flat seam roofing—the standing seam stripsare laid as follows: Take the strip C and lock it well into thelock B of the gutter A as shown, and place the cleat… … Fig. 223. Press the strip C firmly onto the roof and turn over edge h of the cleatD. This holds the sheet C in position. Now take the next sheet E,press it down and against the cleat D and turn over the edge d, whichholds E in position. These cleats should be placed about 18 inches
