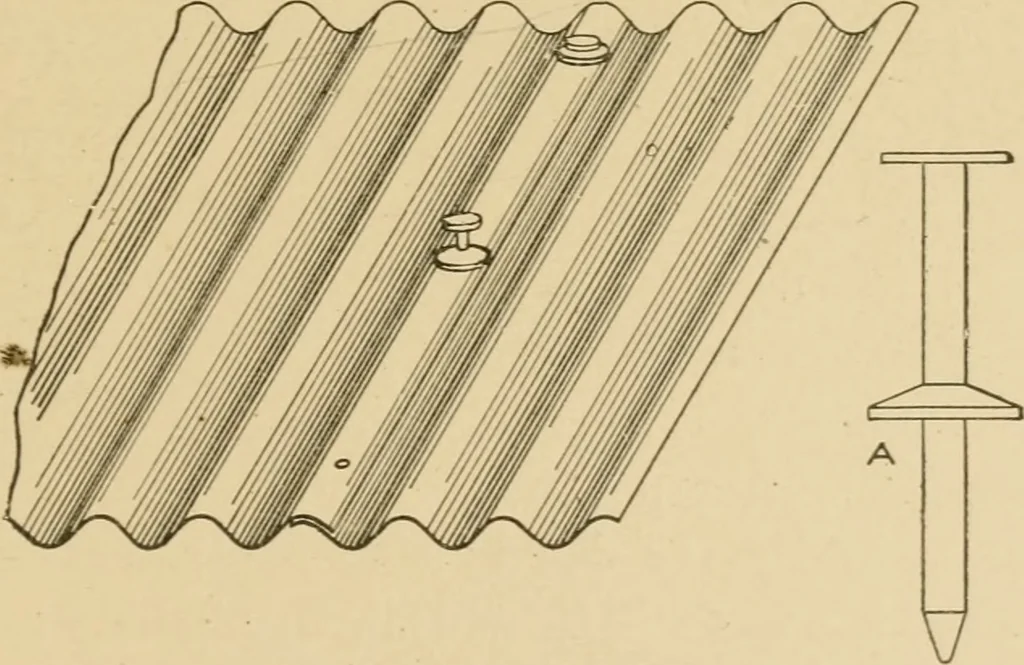

8 1.12 1.41 1.56 . 154 152 150 149 148 1.46 ■ 24 .023 .88 1.11 123 121 119 118 117 117 1.22 26 .018 .72 .91 101 99 97 97 96 95 1.06 LAYING CORRLQ.\TED ROOFING ^Mien laying corrugated iron on wood sheathing use galvanizediron nails and lead washers. The advantage in using lead washers isthat they… … Fig. 2.3.3 and washer. AMien laying, commence at the left liantl corner of theeave and end of the building. Continue laying to the ridge by lappingthe second sheet over the fh*st 4 inches,the left-hand edge being finishedby means of a gable band A, formed as shown in Fig. 234, into whichthe…
